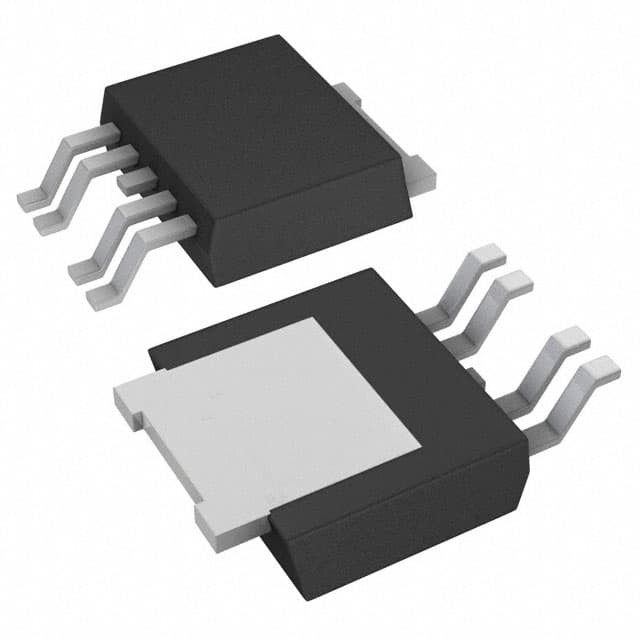

LD39150PT-R IC REG LINEAIR POS ADJ 1,5A PPAK STMicroelectronics
| Merknaam | STMicroelectronics |
|---|---|
| Modelnummer | Ld39150pt-r |
| Min. bestelaantal | 1 |
| Prijs | Based on current price |
| Verpakking Details | antistatische zak & kartondoos |
| Levertijd | 3-5 werkdagen |
| Betalingscondities | T/T |
| Levering vermogen | In voorraad |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Uitgangsconfiguratie | Positief | Uitvoertype | Regelbaar |
|---|---|---|---|
| Aantal regelgevers | 1 | Ingevoerd voltage - (Maximum) | 6V |
| Voltage - (Min/Vaste) Output | 1.22V | Voltage - (Maximum) Output | 5V |
| Spanningsuitval (Max) | 0.4V @ 1.5A | Huidig - Output | 1.5A |
| Huidig - Rustig (IQ) | 2.5 mA | Huidig - (Maximum) Levering | - |
| PSRR | 65dB ~ 55dB (120Hz ~ 1kHz) | Controleeigenschappen | - |
| Beschermingseigenschappen | Over Stroom, over Temperatuur | Werktemperatuur | -40°C ~ 125°C (TJ) |
| Montage-type | Oppervlakte | Pakket / doos | Aan-252-5, DPak (4 Lood + Lusje), aan-252AD |
| Verpakking van de leverancier | PPAK |
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
| Part Number | Description | |
|---|---|---|
| LD39150PT-R | IC REG LINEAR POS ADJ 1.5A PPAK | |
| LD29150PTR | IC REG LINEAR POS ADJ 1.5A PPAK | |
| LD29150PT50R | IC REG LINEAR 5V 1.5A PPAK | |
| LF50ABPT-TR | IC REG LINEAR 5V 500MA PPAK | |
| LF90CPT-TR | IC REG LINEAR 9V 500MA PPAK | |
| TPS78533QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| LF50CPT-TR | IC REG LINEAR 5V 500MA PPAK | |
| TPS7B8750QKVURQ1R2 | AUTOMOTIVE 500-MA, 40-V, LOW DRO | |
| TPS7A6133QKVURQ1 | IC REG LINEAR 3.3V 300MA TO252-5 | |
| LF18ABPT-TR | IC REG LINEAR 1.8V 500MA PPAK | |
| TPS7B8650QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| TPS7A6050QKVURQ1 | IC REG LINEAR 5V 300MA TO252-5 | |
| TPS7A6033QKVURQ1 | IC REG LINEAR 3.3V 300MA TO252-5 | |
| TPS78550QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| TPS7A6150QKVURQ1 | IC REG LINEAR 5V 300MA TO252-5 | |
| LD39080PT25-R | IC REG LINEAR 2.5V 800MA PPAK | |
| LD39150PT18-R | IC REG LINEAR 1.8V 1.5A PPAK | |
| LD29080PT18R | IC REG LINEAR 1.8V 800MA PPAK | |
| LF85CPT-TR | IC REG LINEAR 8.5V 500MA PPAK | |
| LDF33PT-TR | IC REG LINEAR 3.3V 1A PPAK | |
| TPS7B8633QKVURQ1R2 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| LD39080PT18-R | IC REG LINEAR 1.8V 800MA PPAK | |
| LF18CPT-TR | IC REG LINEAR 1.8V 500MA PPAK | |
| LD29080PT33R | IC REG LINEAR 3.3V 800MA PPAK | |
| TPS78511QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| TPS78518QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| LF33CPT-TR | IC REG LINEAR 3.3V 500MA PPAK | |
| TPS78512QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| LD39300PT25-R | IC REG LINEAR 2.5V 3A PPAK | |
| LD49150PT12R | IC REG LINEAR 1.2V 1.5A PPAK | |
| TPS7B8633QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| TPS7B8601QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| TPS7B8650QKVURQ1R2 | AUTOMOTIVE 500-MA, 40-V, ULTRA-L | |
| TPS7B8733QKVURQ1R2 | AUTOMOTIVE 500-MA, 40-V, LOW DRO | |
| TPS7B8733QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, LOW DRO | |
| LDF25PT-TR | IC REG LINEAR 2.5V 1A PPAK | |
| LDF18PT-TR | IC REG LINEAR 1.8V 1A PPAK | |
| LDR2533BPT-R | IC REG LINEAR 2.5V/3.3V PPAK | |
| LDFMPT-TR | IC REG LINEAR POS ADJ 500MA PPAK | |
| TLE4275QKVURQ1 | IC REG LINEAR 5V 450MA TO252-5 | |
| TPS78510QKVURQ1 | AUTOMOTIVE, 1-A, HIGH-ACCURACY, | |
| TPS7B8750QKVURQ1 | AUTOMOTIVE 500-MA, 40-V, LOW DRO | |
| LF25CPT-TR | IC REG LINEAR 2.5V 500MA PPAK | |
| TPS78501QKVURQ1 | IC POWER | |
| L5300EPTTR | IC REG LINEAR 5V 300MA PPAK | |
| L5300RPTTR | IC REG LINEAR 5V 300MA PPAK | |
| LD29080PT15R | IC REG LINEAR 1.5V 800MA PPAK | |
| LD39080PT33-R | IC REG LINEAR 3.3V 800MA PPAK | |
| TPS7B8133QKVURQ1 | IC REG LINEAR 3.3V 150MA TO252-5 | |
| TPS7B8150QKVURQ1 | IC REG LINEAR 5V 150MA TO252-5 | |
| TPS7B8250QKVURQ1 | IC REG LINEAR 5V 300MA TO252-5 | |
| TPS7B8233QKVURQ1 | IC REG LINEAR 3.3V 300MA TO252-5 | |
| TL751M12QKVURQ1 | IC REG LINEAR 12V 750MA TO252-5 | |
| TL751M05QKVURQ1 | IC REG LINEAR 5V 750MA TO252-5 | |
| TL751M08QKVURQ1 | IC REG LINEAR 8V 750MA TO252-5 | |
| LD49300PT10R | IC REG LINEAR 1V 3A PPAK | |
| LD39300PT33-R | IC REG LINEAR 3.3V 3A PPAK | |
| LD49150PT08R | IC REG LINEAR POS ADJ 1.5A PPAK | |
| LD39150PT25-R | IC REG LINEAR 2.5V 1.5A PPAK | |
| LD29080PT50R | IC REG LINEAR 5V 800MA PPAK | |
| LD29080PT25R | IC REG LINEAR 2.5V 800MA PPAK | |
| L4931ABPT120R | IC REG LINEAR 12V 250MA PPAK | |
| L4931ABPT25TR | IC REG LINEAR 2.5V 250MA PPAK | |
| L4931ABPT33-TR | IC REG LINEAR 3.3V 250MA PPAK | |
| L4931ABPT50TR | IC REG LINEAR 5V 250MA PPAK | |
| LD29150PT25R | IC REG LINEAR 2.5V 1.5A PPAK | |
| LD29150PT33R | IC REG LINEAR 3.3V 1.5A PPAK | |
| ST2L05-1500PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05-1800PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05-1825PT | IC REG LIN 1.8V/2.5V 1A/1A PPAK | |
| ST2L05-2500PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05-3300PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05-3325PT | IC REG LIN 2.5V/3.3V 1A/1A PPAK | |
| ST2L01PTR | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05R1800PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| ST2L05R1825PT | IC REG LIN 1.8V/2.5V 1A/1A PPAK | |
| ST2L05R2500PT | IC REG LIN POS ADJ 1A/1A PPAK | |
| LD29150PT18R | IC REG LINEAR 1.8V 1.5A PPAK | |
| L4931ABPT120 | IC REG LINEAR 12V 250MA PPAK | |
| L4931ABPT25 | IC REG LINEAR 2.5V 250MA PPAK | |
| L4931ABPT33 | IC REG LINEAR 3.3V 250MA PPAK | |
| L4931ABPT50 | IC REG LINEAR 5V 250MA PPAK | |
| L4931ABPT80 | IC REG LINEAR 8V 250MA PPAK | |
| L4931ABPT80TR | IC REG LINEAR 8V 250MA PPAK | |
| L4931CPT120 | IC REG LINEAR 12V 250MA PPAK | |
| L4931CPT120-TR | IC REG LINEAR 12V 250MA PPAK | |
| L4931CPT25 | IC REG LINEAR 2.5V 250MA PPAK | |
| L4931CPT25-TR | IC REG LINEAR 2.5V 250MA PPAK | |
| L4931CPT33 | IC REG LINEAR 3.3V 250MA PPAK | |
| L4931CPT33-TR | IC REG LINEAR 3.3V 250MA PPAK | |
| L4931CPT50 | IC REG LINEAR 5V 250MA PPAK | |
| L4931CPT50-TR | IC REG LINEAR 5V 250MA PPAK | |
| L4931CPT80-TR | IC REG LINEAR 8V 250MA PPAK | |
| L4987CPT120 | IC REG LINEAR 12V 200MA PPAK | |
| L4987CPT33 | IC REG LINEAR 3.3V 200MA PPAK | |
| L4987CPT33TR | IC REG LINEAR 3.3V 200MA PPAK | |
| L4987CPT50 | IC REG LINEAR 5V 200MA PPAK | |
| L4987CPT50TR | IC REG LINEAR 5V 200MA PPAK | |
| LD29080PT90R | IC REG LINEAR 9V 800MA PPAK | |
| LD29150PT | IC REG LINEAR POS ADJ 1.5A PPAK | |
| LD29150PT15 | IC REG LINEAR 1.5V 1.5A PPAK | |
| LD29150PT15R | IC REG LINEAR 1.5V 1.5A PPAK | |
| LD29150PT18 | IC REG LINEAR 1.8V 1.5A PPAK | |
| LD29150PT25 | IC REG LINEAR 2.5V 1.5A PPAK | |
| LD29150PT33 | IC REG LINEAR 3.3V 1.5A PPAK | |
| LD29150PT50 | IC REG LINEAR 5V 1.5A PPAK | |
| LD29150PT80 | IC REG LINEAR 8V 1.5A PPAK | |
| LD29150PT80R | IC REG LINEAR 8V 1.5A PPAK | |
| LDR1833PT | IC REG LINEAR 1.8V/3.3V PPAK | |
| LDR1833PT-R | IC REG LINEAR 1.8V/3.3V PPAK | |
| LDR2533PT-R | IC REG LINEAR 2.5V/3.3V PPAK | |
| LF120ABPT-TR | IC REG LINEAR 12V 500MA PPAK | |
| LF120CPT | IC REG LINEAR 12V 500MA PPAK | |
| LF120CPT-TR | IC REG LINEAR 12V 500MA PPAK | |
| LF18ABPT | IC REG LINEAR 1.8V 500MA PPAK | |
| LF18CPT | IC REG LINEAR 1.8V 500MA PPAK | |
| LF25ABPT-TR | IC REG LINEAR 2.5V 500MA PPAK | |
| LF25CPT | IC REG LINEAR 2.5V 500MA PPAK | |
| LF27CPT | IC REG LINEAR 2.7V 500MA PPAK | |
| LF30ABPT | IC REG LINEAR 3V 500MA PPAK | |
| LF30CPT | IC REG LINEAR 3V 500MA PPAK | |
| LF33ABPT | IC REG LINEAR 3.3V 500MA PPAK | |
| LF33ABPT-TR | IC REG LINEAR 3.3V 500MA PPAK | |
| LF33CPT | IC REG LINEAR 3.3V 500MA PPAK | |
| LF40CPT | IC REG LINEAR 4V 500MA PPAK | |
| LF50ABPT | IC REG LINEAR 5V 500MA PPAK | |
| LF50CPT | IC REG LINEAR 5V 500MA PPAK | |
| LF60CPT | IC REG LINEAR 6V 500MA PPAK | |
| LF80ABPT | IC REG LINEAR 8V 500MA PPAK | |
| LF80ABPT-TR | IC REG LINEAR 8V 500MA PPAK | |
| LF80CPT | IC REG LINEAR 8V 500MA PPAK | |
| LF80CPT-TR | IC REG LINEAR 8V 500MA PPAK | |
| LF85ABPT-TR | IC REG LINEAR 8.5V 500MA PPAK | |
| LF85CPT | IC REG LINEAR 8.5V 500MA PPAK | |
| LF90ABPT | IC REG LINEAR 9V 500MA PPAK | |
| LF90ABPT-TR | IC REG LINEAR 9V 500MA PPAK | |
| LF90CPT | IC REG LINEAR 9V 500MA PPAK | |
| ST1L04PT | IC REG LINEAR POS ADJ 1A PPAK | |
| LD39300PT-R | IC REG LINEAR POS ADJ 3A PPAK | |
| LD39080PT-R | IC REG LINEAR POS ADJ 800MA PPAK | |
| LD39150PT33-R | IC REG LINEAR 3.3V 1.5A PPAK | |
| LD39300PT18-R | IC REG LINEAR 1.8V 3A PPAK | |
| LD49300PT08R | IC REG LINEAR POS ADJ 3A PPAK | |
| ST1L04PT-R | IC REG LINEAR POS ADJ 1A PPAK | |
| LD49300PT12R | IC REG LINEAR 1.2V 3A PPAK | |
| LF33CPT-TRY | IC REG LINEAR 3.3V 500MA PPAK | |
| LF50CPT-TRY | IC REG LINEAR 5V 500MA PPAK | |
| LF85CPT-TRY | IC REG LINEAR 8.5V 500MA PPAK | |
| LDFM50PT-TR | IC REG LINEAR 5V 500MA PPAK | |
| LDFPT-TR | IC REG LINEAR POS ADJ 1A PPAK |
Productomschrijving
Productgegevens
Beschrijving
De LD39150 is een snelle ultra-low drop lineaire regulator die werkt van 2,5 V tot 6 V invoer.De lage valspanning, het lage geluid en de ultra lage stilstandstroom maken het geschikt voor lage spanningsmicroprocessor- en geheugentoepassingen.Het apparaat is ontwikkeld volgens een BiCMOS-proces dat een lage stilstandsstroom laat werken, onafhankelijk van de uitgangslaststroom.
Kenmerken
• 1.5 Een gegarandeerde uitgangsstroom• Ultralage uitslagspanning (200 mV typ. @ 1,5 A-belasting, 40 mV typ. @ 300 mA-belasting)
• Zeer lage stilstandstroom (1 mA typisch @ 1,5 A belasting, 1 μA max @ 25 °C in uitstand)
• Elektronisch afsluiten met logica
• Inwendige grens van stroom en warmte
• ±1,5% uitgangsspanningstoestand @ 25 °C
• Vaste en ADJ-uitgangsspanningen: 1,8 V, 2,5 V, 3,3 V, ADJ
• Temperatuurbereik: -40 tot 125 °C
• Snelle dynamische reactie op veranderingen van lijn en belasting
• Stabiel met een keramische condensator
• Verkrijgbaar in PPAK, DPAK en DFN6 (3x3 mm)
Toepassingen
• Voeding voor microprocessors• DSP's stroomvoorziening
• Postregulators voor het wisselen van leverancier
• Hoog efficiënte lineaire regulator
Specificaties
| Aantekening | Waarde van de eigenschap |
|---|---|
| Vervaardiging | STMicro-elektronica |
| Productcategorie | Lineaire spanningsregulatoren |
| Reeks | LD39150 |
| Verpakking | Alternatieve verpakking |
| Montage-stijl | SMD/SMT |
| Pakketdoos | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Werktemperatuur | -40 °C ~ 125 °C |
| Montage-type | Oppervlakte |
| Uitgangstype | Verstelbaar |
| Verpakking van het product van de leverancier | PPAK |
| Voltage-invoer | 2.5 V ~ 6 V |
| Aantal outputten | 1 Output |
| Stroom-uitgang | 1.5A |
| Voltage-uitgang | 1.22 V ~ 5 V |
| Regulator-topologie | Positief verstelbaar |
| Spanningsverlies-typisch | 0.2V @ 1.5A |
| Aantal regelgevers | 1 Regulerend apparaat |
| Stroomlimiet-min | - |
| Maximale werktemperatuur | + 125 °C |
| Werktemperatuurbereik | - 40 C. |
| Uitgangsspanning | 1.22 V tot 5 V |
| Invoerspanning-MAX | 6 V |
| Uitgangsstroom | 1.5 A |
| Invoerspanning-MIN | + 2,5 V |
| Beperking van de belasting | 00,06 % / A |
| Voltage-regelingsnauwkeurigheid | 1.5 % |
| Pakketdoos | PPAK-5 |
| Ib-Input-Bias-Current | 1 mA |
| Stilstaande stroom | 2.5 mA |
| Referentie-spanning | 1.22 V |
| Verwijderingsspanning | 00,04 V bij 300 mA |
| Verwijderingsspanning-max | 80 mV bij 300 mA |
| Lijnregeling | 00,04 % |
Beschrijvingen
Lineaire spanningsregulator IC Positief instelbaar 1 Uitgang 1.22 V ~ 5 V 1.5A PPAK
LDO-regulator Pos 1,22V tot 5V 1,5A 5-pin ((4+Tab) PPAK T/R
LDO-spanningsregulators Bicmos Vltg Regulatr Ultra Lo Drop
Geadviseerde Producten
