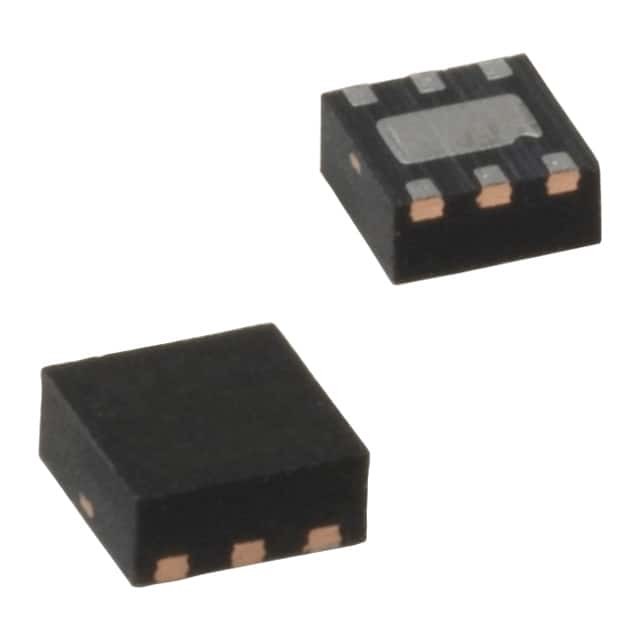

MIC5301YMT-TR IC REG LIN POS ADJ 150MA 6TMLF Microchiptechnologie
| Merknaam | Microchip Technology |
|---|---|
| Modelnummer | MIC5301YMT-TR |
| Min. bestelaantal | 1 |
| Prijs | Based on current price |
| Verpakking Details | antistatische zak & kartondoos |
| Levertijd | 3-5 werkdagen |
| Betalingscondities | T/T |
| Levering vermogen | In voorraad |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Uitgangsconfiguratie | Positief | Uitvoertype | Regelbaar |
|---|---|---|---|
| Aantal regelgevers | 1 | Ingevoerd voltage - (Maximum) | 5.5V |
| Voltage - (Min/Vaste) Output | 1.25V | Voltage - (Maximum) Output | 5.5V |
| Spanningsuitval (Max) | 0.1V @ 150mA | Huidig - Output | 150mA |
| Huidig - Rustig (IQ) | 120 µA | Huidig - (Maximum) Levering | - |
| PSRR | 75dB ~ 50dB (1kHz ~ 20kHz) | Controleeigenschappen | Laat toe |
| Beschermingseigenschappen | Over Stroom, over Temperatuur | Werktemperatuur | -40°C ~ 125°C |
| Montage-type | Oppervlakte | Pakket / doos | 6-UFDFN Blootgesteld Stootkussen, 6-TMLF® |
| Verpakking van de leverancier | 6-TMLF® (1.6x1.6) |
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
| Part Number | Description | |
|---|---|---|
| MIC5301YMT-TR | IC REG LIN POS ADJ 150MA 6TMLF | |
| MIC5318-3.3YMT-TR | IC REG LINEAR 3.3V 300MA 6TMLF | |
| MIC5301-3.3YMT-TR | IC REG LINEAR 3.3V 150MA 6TMLF | |
| MIC5318YMT-TR | IC REG LIN POS ADJ 300MA 6TMLF | |
| MIC5308-1.5YMT-TR | IC REG LINEAR 1.5V 150MA 6TMLF | |
| MIC5320-H4FYMT-TR | IC REG LINEAR 1.5V/2.4V 6TMLF | |
| MIC5381-MGYFT-TR | IC REG LINEAR 1.8V/2.8V 6TMLF | |
| MIC5318-1.8YMT-TR | IC REG LINEAR 1.8V 300MA 6TMLF | |
| MIC5318-1.5YMT-TR | IC REG LINEAR 1.5V 300MA 6TMLF | |
| MIC5308YMT-TR | IC REG LIN POS ADJ 150MA 6TMLF | |
| MIC5309YMT-TR | IC REG LIN POS ADJ 300MA 6TMLF | |
| MIC5320-KGYMT-TR | IC REG LINEAR 1.8V/2.6V 6TMLF | |
| MIC47050-1.8YML-TR | IC REG LINEAR 1.8V 500MA 6MLF | |
| MIC5335-SMYMT-TR | IC REG LINEAR 2.8V/3.3V 6TMLF | |
| MIC5335-OOYMT-TR | IC REG LINEAR 2.9V/2.9V 6TMLF | |
| MIC5335-GGYMT-TR | IC REG LINEAR 1.8V/1.8V 6TMLF | |
| MIC5335-MFYMT-TR | IC REG LINEAR 1.5V/2.8V 6TMLF | |
| MIC5367-1.2YMT-TR | IC REG LINEAR 1.2V 150MA 6TMLF | |
| MIC5309-1.2YMT-TR | IC REG LINEAR 1.2V 300MA 6TMLF | |
| MIC5319-2.5YML-TR | IC REG LINEAR 2.5V 500MA 6TMLF | |
| MIC47050YMT-TR | IC REG LIN POS ADJ 500MA 6TMLF | |
| MIC5304-RGYMT-TR | IC REG LIN 1.8V/3.2V 150MA 6TMLF | |
| MIC5304-XDYMT-TR | IC REG LIN 1.85/3.15V 6TMLF | |
| MIC5304-XGHYMT-TR | IC REG LIN 1.88/3.15V 6TMLF | |
| MIC5381-G4YFT-TR | IC REG LINEAR 1.2V/1.8V 6TMLF | |
| MIC5381-M4YFT-TR | IC REG LINEAR 1.2V/2.8V 6TMLF | |
| MIC5381-PPYFT-TR | IC REG LINEAR 3V/3V 6TMLF | |
| MIC5381-SSYFT-TR | IC REG LINEAR 3.3V/3.3V 6TMLF | |
| MIC5318-2.1YMT-TR | IC REG LINEAR 2.1V 300MA 6TMLF | |
| MIC5318-2.9YMT-TR | IC REG LINEAR 2.9V 300MA 6TMLF | |
| MIC5318-3.0YMT-TR | IC REG LINEAR 3V 300MA 6TMLF | |
| MIC5318-4.6YMT-TR | IC REG LINEAR 4.6V 300MA 6TMLF | |
| MIC5318-2.6YMT-TR | IC REG LINEAR 2.6V 300MA 6TMLF | |
| MIC5318-2.5YMT-TR | IC REG LINEAR 2.5V 300MA 6TMLF | |
| MIC5318-2.8YMT-TR | IC REG LINEAR 2.8V 300MA 6TMLF | |
| MIC5308-1.2YMT-TR | IC REG LINEAR 1.2V 150MA 6TMLF | |
| MIC5308-1.8YMT-TR | IC REG LINEAR 1.8V 150MA 6TMLF | |
| MIC5309-1.5YMT-TR | IC REG LINEAR 1.5V 300MA 6TMLF | |
| MIC5309-1.8YMT-TR | IC REG LINEAR 1.8V 300MA 6TMLF | |
| MIC5321-PPYML-TR | IC REG LINEAR 3V/3V 6MLF | |
| MIC5321-PKYMT-TR | IC REG LINEAR 2.6V/3V 6TMLF | |
| MIC5320-46MYMT-TR | IC REG LINEAR 2.8V/4.6V 6TMLF | |
| MIC5320-GFYMT-TR | IC REG LINEAR 1.5V/1.8V 6TMLF | |
| MIC5320-GWYMT-TR | IC REG LINEAR 1.6V/1.8V 6TMLF | |
| MIC5320-JGYMT-TR | IC REG LINEAR 1.8V/2.5V 6TMLF | |
| MIC5320-JJYMT-TR | IC REG LINEAR 2.5V/2.5V 6TMLF | |
| MIC5320-KDYMT-TR | IC REG LINEAR 1.85V/2.6V 6TMLF | |
| MIC5320-LLYMT-TR | IC REG LINEAR 2.7V/2.7V 6TMLF | |
| MIC5320-MKYMT-TR | IC REG LINEAR 2.6V/2.8V 6TMLF | |
| MIC5320-NDYMT-TR | IC REG LINEAR 1.85V/2.85V 6TMLF | |
| MIC5320-NKYMT-TR | IC REG LINEAR 2.6V/2.85V 6TMLF | |
| MIC5320-OFYMT-TR | IC REG LINEAR 1.5V/2.9V 6TMLF | |
| MIC5320-OGYMT-TR | IC REG LINEAR 1.8V/2.9V 6TMLF | |
| MIC5320-OOYMT-TR | IC REG LINEAR 2.9V/2.9V 6TMLF | |
| MIC5320-PJYMT-TR | IC REG LINEAR 2.5V/3V 6TMLF | |
| MIC5320-PPYMT-TR | IC REG LINEAR 3V/3V 6TMLF | |
| MIC5320-SNYMT-TR | IC REG LINEAR 2.85V/3.3V 6TMLF | |
| MIC5320-SOYMT-TR | IC REG LINEAR 2.9V/3.3V 6TMLF | |
| MIC5320-SRYMT-TR | IC REG LINEAR 3.2V/3.3V 6TMLF | |
| MIC5320-SSYMT-TR | IC REG LINEAR 3.3V/3.3V 6TMLF | |
| MIC5321-GFYMT-TR | IC REG LINEAR 1.5V/1.8V 6TMLF | |
| MIC5321-GWYMT-TR | IC REG LINEAR 1.6V/1.8V 6TMLF | |
| MIC5321-JGYMT-TR | IC REG LINEAR 1.8V/2.5V 6TMLF | |
| MIC5321-JJYMT-TR | IC REG LINEAR 2.5V/2.5V 6TMLF | |
| MIC5321-KDYMT-TR | IC REG LINEAR 1.85V/2.6V 6TMLF | |
| MIC5321-KGYMT-TR | IC REG LINEAR 1.8V/2.6V 6TMLF | |
| MIC5321-MFYMT-TR | IC REG LINEAR 1.5V/2.8V 6TMLF | |
| MIC5321-MGYMT-TR | IC REG LINEAR 1.8V/2.8V 6TMLF | |
| MIC5321-MKYMT-TR | IC REG LINEAR 2.6V/2.8V 6TMLF | |
| MIC5321-MMYMT-TR | IC REG LINEAR 2.8V/2.8V 6TMLF | |
| MIC5321-NDYMT-TR | IC REG LINEAR 1.85V/2.85V 6TMLF | |
| MIC5321-NKYMT-TR | IC REG LINEAR 2.6V/2.85V 6TMLF | |
| MIC5321-NNYMT-TR | IC REG LINEAR 2.85V/2.85V 6TMLF | |
| MIC5321-OFYMT-TR | IC REG LINEAR 1.5V/2.9V 6TMLF | |
| MIC5321-OGYMT-TR | IC REG LINEAR 1.8V/2.9V 6TMLF | |
| MIC5321-OOYMT-TR | IC REG LINEAR 2.9V/2.9V 6TMLF | |
| MIC5321-PJYMT-TR | IC REG LINEAR 2.5V/3V 6TMLF | |
| MIC5321-PMYMT-TR | IC REG LINEAR 2.8V/3V 6TMLF | |
| MIC5321-PNYMT-TR | IC REG LINEAR 2.85V/3V 6TMLF | |
| MIC5321-SFYMT-TR | IC REG LINEAR 1.5V/3.3V 6TMLF | |
| MIC5321-SGYMT-TR | IC REG LINEAR 1.8V/3.3V 6TMLF | |
| MIC5321-SJYMT-TR | IC REG LINEAR 2.5V/3.3V 6TMLF | |
| MIC5321-SKYMT-TR | IC REG LINEAR 2.6V/3.3V 6TMLF | |
| MIC5321-SMYMT-TR | IC REG LINEAR 2.8V/3.3V 6TMLF | |
| MIC5321-SNYMT-TR | IC REG LINEAR 2.85V/3.3V 6TMLF | |
| MIC5321-SOYMT-TR | IC REG LINEAR 2.9V/3.3V 6TMLF | |
| MIC5321-SPYMT-TR | IC REG LINEAR 3V/3.3V 6TMLF | |
| MIC5321-SRYMT-TR | IC REG LINEAR 3.2V/3.3V 6TMLF | |
| MIC5321-SSYMT-TR | IC REG LINEAR 3.3V/3.3V 6TMLF | |
| MIC5320-MMYMT-TR | IC REG LINEAR 2.8V/2.8V 6TMLF | |
| MIC5320-NNYMT-TR | IC REG LINEAR 2.85V/2.85V 6TMLF | |
| MIC5320-PGYMT-TR | IC REG LINEAR 1.8V/3V 6TMLF | |
| MIC5320-PNYMT-TR | IC REG LINEAR 2.85V/3V 6TMLF | |
| MIC5320-SFYMT-TR | IC REG LINEAR 1.5V/3.3V 6TMLF | |
| MIC5320-SJYMT-TR | IC REG LINEAR 2.5V/3.3V 6TMLF | |
| MIC5320-SKYMT-TR | IC REG LINEAR 2.6V/3.3V 6TMLF | |
| MIC5320-SMYMT-TR | IC REG LINEAR 2.8V/3.3V 6TMLF | |
| MIC5321-LLYMT-TR | IC REG LINEAR 2.7V/2.7V 6TMLF | |
| MIC5321-PGYMT-TR | IC REG LINEAR 1.8V/3V 6TMLF | |
| MIC5320-MFYMT-TR | IC REG LINEAR 1.5V/2.8V 6TMLF | |
| MIC5320-MGYMT-TR | IC REG LINEAR 1.8V/2.8V 6TMLF | |
| MIC5320-PKYMT-TR | IC REG LINEAR 2.6V/3V 6TMLF | |
| MIC5320-PMYMT-TR | IC REG LINEAR 2.8V/3V 6TMLF | |
| MIC5320-SPYMT-TR | IC REG LINEAR 3V/3.3V 6TMLF | |
| MIC5322-MFYMT-TR | IC REG LINEAR 1.5V/2.8V 6TMLF | |
| MIC5322-MGYMT-TR | IC REG LINEAR 1.8V/2.8V 6TMLF | |
| MIC5322-NNYMT-TR | IC REG LINEAR 2.85V/2.85V 6TMLF | |
| MIC5322-PMYMT-TR | IC REG LINEAR 2.8V/3V 6TMLF | |
| MIC5322-PNYMT-TR | IC REG LINEAR 2.85V/3V 6TMLF | |
| MIC5322-PPYMT-TR | IC REG LINEAR 3V/3V 6TMLF | |
| MIC5320-GGYMT-TR | IC REG LINEAR 1.8V/1.8V 6TMLF | |
| MIC5321-PPYMT-TR | IC REG LINEAR 3V/3V 6TMLF | |
| MIC5321-SLYMT-TR | IC REG LINEAR 2.7V/3.3V 6TMLF | |
| MIC5335-PJYMT-TR | IC REG LINEAR 2.5V/3V 6TMLF | |
| MIC5335-SSYMT-TR | IC REG LINEAR 3.3V/3.3V 6TMLF | |
| MIC5335-KGYMT-TR | IC REG LINEAR 1.8V/2.6V 6TMLF | |
| MIC5335-PGYMT-TR | IC REG LINEAR 1.8V/3V 6TMLF | |
| MIC5335-SPYMT-TR | IC REG LINEAR 3V/3.3V 6TMLF | |
| MIC5335-GFYMT-TR | IC REG LINEAR 1.5V/1.8V 6TMLF | |
| MIC5335-GWYMT-TR | IC REG LINEAR 1.6V/1.8V 6TMLF | |
| MIC5335-JGYMT-TR | IC REG LINEAR 1.8V/2.5V 6TMLF | |
| MIC5335-JJYMT-TR | IC REG LINEAR 2.5V/2.5V 6TMLF | |
| MIC5335-KDYMT-TR | IC REG LINEAR 1.85V/2.6V 6TMLF | |
| MIC5335-LLYMT-TR | IC REG LINEAR 2.7V/2.7V 6TMLF | |
| MIC5335-NDYMT-TR | IC REG LINEAR 1.85V/2.85V 6TMLF | |
| MIC5335-NKYMT-TR | IC REG LINEAR 2.6V/2.85V 6TMLF | |
| MIC5335-SJYMT-TR | IC REG LINEAR 2.5V/3.3V 6TMLF | |
| MIC5335-SNYMT-TR | IC REG LINEAR 2.85V/3.3V 6TMLF | |
| MIC5335-SOYMT-TR | IC REG LINEAR 2.9V/3.3V 6TMLF | |
| MIC5335-SRYMT-TR | IC REG LINEAR 3.2V/3.3V 6TMLF | |
| MIC5335-MGYMT-TR | IC REG LINEAR 1.8V/2.8V 6TMLF | |
| MIC5335-MKYMT-TR | IC REG LINEAR 1.8V/2.8V 6TMLF | |
| MIC5335-MMYMT-TR | IC REG LINEAR 2.8V/2.8V 6TMLF | |
| MIC5335-NNYMT-TR | IC REG LINEAR 2.85V/2.85V 6TMLF | |
| MIC5335-OFYMT-TR | IC REG LINEAR 1.5V/2.9V 6TMLF | |
| MIC5335-OGYMT-TR | IC REG LINEAR 1.8V/2.9 6TMLF | |
| MIC5335-PKYMT-TR | IC REG LINEAR 2.6V/2.8V 6TMLF | |
| MIC5335-PMYMT-TR | IC REG LINEAR 2.8V/3V 6TMLF | |
| MIC5335-PNYMT-TR | IC REG LINEAR 2.85V/3V 6TMLF | |
| MIC5335-PPYMT-TR | IC REG LINEAR 3V/3V 6TMLF | |
| MIC5335-SFYMT-TR | IC REG LINEAR 1.5V/3.3V 6TMLF | |
| MIC5335-SGYMT-TR | IC REG LINEAR 1.8V/3.3V 6TMLF | |
| MIC5335-SKYMT-TR | IC REG LINEAR 2.6V/3.3V 6TMLF | |
| MIC5335-SLYMT-TR | IC REG LINEAR 2.7V/3.3V 6TMLF | |
| MIC5319-3.0YML-TR | IC REG LINEAR 3V 500MA 6TMLF | |
| MIC5319-2.8YML-TR | IC REG LINEAR 2.8V 500MA 6TMLF | |
| MIC5319-2.9YML-TR | IC REG LINEAR 2.9V 500MA 6TMLF |
Productomschrijving
Productgegevens
Algemene beschrijving
De MIC5301 is een high performance, single output ultra low LDO (ULDOTM) regulator, die een laag totaal geluidsniveau biedt.De MIC5301 is in staat om 150mA uitgangsstroom te leveren en biedt een hoge PSRR en een laag uitgangsgeluid, waardoor het een ideale oplossing is voor RF-toepassingen.
Kenmerken
• Ultra lage uitslagspanning 40mV @ 150mA• Invoerspanningsbereik: 2,3 V tot 5,5 V
• 150mA gegarandeerde uitgangsstroom
• Stabiel met keramische uitgangscondensatoren
• Ultra laag uitgangsgeluid 30 μVrms
• lage stilstandstroom ¥ 85 μA in totaal
• Hoge PSRR ¢ tot75 dB@1 kHz
• 35 μs aan- en uitschakeltijd
• Hoge uitvoernauwkeurigheid
• ± 2% aanvankelijke nauwkeurigheid
• ± 3% boven de temperatuur
• Thermische afsluiting en grensbeveiliging van de stroom
• Kleine 6-pins 1,6 mm x 1,6 mm Thin MLF® loodloze verpakking
• Dunne verpakking SOT-23-5
Toepassingen
•Mobiele telefoons•PDA's
•GPS-ontvangers
• Draagbare elektronica
• Digitale foto's en videocamera's
Specificaties
| Aantekening | Waarde van de eigenschap |
|---|---|
| Vervaardiging | Microchiptechnologie |
| Productcategorie | Lineaire spanningsregulatoren |
| Reeks | - |
| Verpakking | Tape & Reel (TR) |
| Montage-stijl | SMD/SMT |
| Pakketdoos | 6-UFDFN Exposed Pad, 6-TMLFR |
| Werktemperatuur | -40 °C ~ 125 °C |
| Montage-type | Oppervlakte |
| Verpakking van het product van de leverancier | 6-TMLFR (1.6x1.6) |
| Voltage-invoer | 2.3 V ~ 5,5 V |
| Stroom-uitgang | 150 mA |
| Voltage-uitgang | 1.25 V ~ 5,5 V |
| Regulator-topologie | Positief verstelbaar |
| Spanningsverlies-typisch | 0.04V @ 150mA |
| Aantal regelgevers | 1 Regulerend apparaat |
| Stroomlimiet-min | 275 mA |
| Uitgangsstroom | 150 mA |
| Deel-#-Aliassen | MIC5301YMT TR |
| Pakketdoos | MLF-6 |
Beschrijvingen
Lineaire spanningsregelaar IC Positief verstelbaar 1 Uitgang 1.25 V ~ 5.5 V 150mA 6-TMLF? (1.6x1.6)
LDO-regulator Pos 1,25 V tot 5,5 V 0,15 A 6-pin UDFN EP T/R
LDO-spanningsregelaars
Geadviseerde Producten
