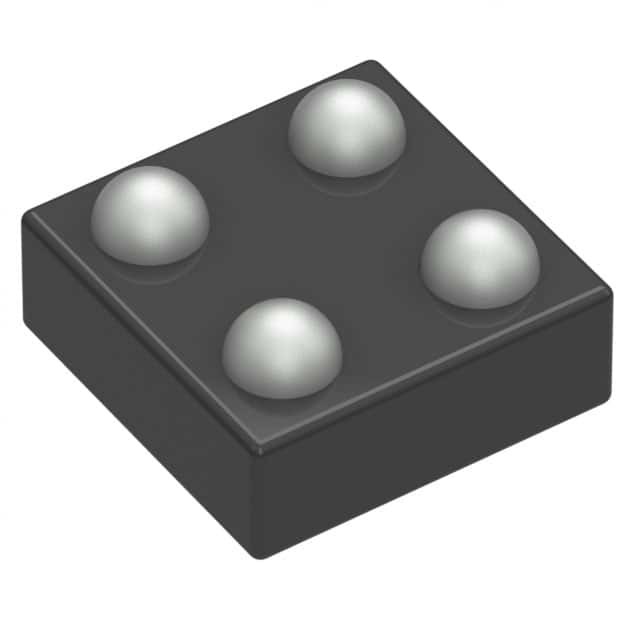

NCP161AFCT330T2G IC REG LINEAR 3.3V 450MA 4WLCSP op semi
| Merknaam | onsemi |
|---|---|
| Modelnummer | NCP161AFCT330T2G |
| Min. bestelaantal | 1 |
| Prijs | Based on current price |
| Verpakking Details | antistatische zak & kartondoos |
| Levertijd | 3-5 werkdagen |
| Betalingscondities | T/T |
| Levering vermogen | In voorraad |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Uitgangsconfiguratie | Positief | Uitvoertype | Vast |
|---|---|---|---|
| Aantal regelgevers | 1 | Ingevoerd voltage - (Maximum) | 5.5V |
| Voltage - (Min/Vaste) Output | 3.3V | Voltage - (Maximum) Output | - |
| Spanningsuitval (Max) | 0.26V @ 450mA | Huidig - Output | 450mA |
| Huidig - Rustig (IQ) | 23 µA | Huidig - (Maximum) Levering | - |
| PSRR | 91dB ~ 48dB (100Hz ~ 100kHz) | Controleeigenschappen | Laat toe |
| Beschermingseigenschappen | Overstroom, overtemperatuur, zachte start | Werktemperatuur | -40°C ~ 125°C |
| Montage-type | Oppervlakte | Pakket / doos | 4-XFBGA, WLCSP |
| Verpakking van de leverancier | 4-WLCSP (0,64x0,64) |
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
| Part Number | Description | |
|---|---|---|
| NCP161AFCT330T2G | IC REG LINEAR 3.3V 450MA 4WLCSP | |
| NCP163AFCT330T2G | IC REG LINEAR 3.3V 250MA 4WLCSP | |
| NCP160AFCT180T2G | IC REG LINEAR 1.8V 250MA 4WLCSP | |
| NCP161BFCS330T2G | IC REG LINEAR 3.3V 450MA 4WLCSP | |
| NCP163AFCS180T2G | IC REG LINEAR 1.8V 250MA 4WLCSP | |
| NCP167AFCT330T2G | IC REG LINEAR 3.3V 700MA 4WLCSP | |
| NCP160BFCT210T2G | IC REG LINEAR 2.1V 250MA 4WLCSP | |
| NCP160AFCS270T2G | IC REG LINEAR 2.7V 250MA 4WLCSP | |
| NCP110AFCT060T2G | IC REG LINEAR 0.6V 200MA 4WLCSP | |
| NCP148AFCT280T2G | IC REG LINEAR 2.8V 450MA 4WLCSP | |
| NCP161AFCS514T2G | IC REG LINEAR 5.14V 450MA 4WLCSP | |
| NCP161AFCS300T2G | IC REG LINEAR 3V 450MA 4WLCSP | |
| NCP161AFCS500T2G | IC REG LINEAR 5V 450MA 4WLCSP | |
| NCP160AFCT350T2G | IC REG LINEAR 3.5V 250MA 4WLCSP | |
| NCP161AFCS250T2G | IC REG LINEAR 2.5V 450MA 4WLCSP | |
| NCP161BFCS350T2G | IC REG LINEAR 3.5V 450MA 4WLCSP | |
| NCP110AFCT120T2G | IC REG LINEAR 1.2V 200MA 4WLCSP | |
| NCP167AFCT180T2G | IC REG LINEAR 1.8V 700MA 4WLCSP | |
| NCP160AFCS280T2G | IC REG LINEAR 2.8V 250MA 4WLCSP | |
| NCP110AFCT100T2G | IC REG LINEAR 1V 200MA 4WLCSP | |
| NCP161AFCS330T2G | IC REG LINEAR 3.3V 450MA 4WLCSP | |
| NCP161AFCT280T2G | IC REG LINEAR 2.8V 450MA 4WLCSP | |
| NCP161BFCS280T2G | IC REG LINEAR 2.8V 450MA 4WLCSP | |
| NCP160AFCT330T2G | IC REG LINEAR 3.3V 250MA 4WLCSP | |
| NCP160AFCS320T2G | IC REG LINEAR 3.2V 250MA 4WLCSP | |
| NCP160AFCS250T2G | IC REG LINEAR 2.5V 250MA 4WLCSP | |
| NCP161BFCS180T2G | IC REG LINEAR 1.8V 450MA 4WLCSP | |
| NCP161AFCT350T2G | IC REG LINEAR 3.5V 450MA 4WLCSP | |
| NCP161AFCT300T2G | IC REG LINEAR 3V 450MA 4WLCSP | |
| NCP161BFCT280T2G | IC REG LINEAR 2.8V 450MA 4WLCSP | |
| NCP161AFCT180T2G | IC REG LINEAR 1.8V 450MA 4WLCSP | |
| NCP110AFCT105T2G | IC REG LINEAR 1.05V 200MA 4WLCSP | |
| NCP110AFCT180T2G | IC REG LINEAR 1.8V 200MA 4WLCSP | |
| NCP167AFCT350T2G | IC REG LINEAR 3.5V 700MA 4WLCSP | |
| NCP167BFCT330T2G | IC REG LINEAR 3.3V 700MA 4WLCSP | |
| NCP160AFCT280T2G | IC REG LINEAR 2.8V 250MA 4WLCSP | |
| NCP161AFCS180T2G | IC REG LINEAR 1.8V 450MA 4WLCSP | |
| NCP163AFCS280T2G | IC REG LINEAR 2.8V 250MA 4WLCSP | |
| NCP163AFCT280T2G | IC REG LINEAR 2.8V 250MA 4WLCSP | |
| NCP163AFCT120T2G | IC REG LINEAR 1.2V 250MA 4WLCSP | |
| NCP148AFCT180T2G | IC REG LINEAR 1.8V 450MA 4WLCSP | |
| NCP148AFCT285T2G | IC REG LINEAR 2.85V 450MA 4WLCSP | |
| NCP148AFCT250T2G | IC REG LINEAR 2.5V 450MA 4WLCSP | |
| NCP160AFCS180T2G | IC REG LINEAR 1.8V 250MA 4WLCSP | |
| NCP161BFCT180T2G | IC REG LINEAR 1.8V 450MA 4WLCSP | |
| NCP160AFCS300T2G | IC REG LINEAR 3V 250MA 4WLCSP | |
| NCP160AFCS330T2G | IC REG LINEAR 3.3V 250MA 4WLCSP | |
| NCP160AFCT300T2G | IC REG LINEAR 3V 250MA 4WLCSP | |
| NCP167AFCT285T2G | IC REG LINEAR 2.85V 700MA 4WLCSP | |
| NCP161AFCS280T2G | IC REG LINEAR 2.8V 450MA 4WLCSP | |
| NCP161BFCT500T2G | IC REG LINEAR 5V 450MA 4WLCSP | |
| NCP110AFCT280T2G | IC REG LINEAR 2.8V 200MA 4WLCSP | |
| NCP163AFCS120T2G | IC REG LINEAR 1.2V 250MA 4WLCSP | |
| NCP161AFCS350T2G | IC REG LINEAR 3.5V 450MA 4WLCSP | |
| NCP161AFCT514T2G | IC REG LINEAR 5.14V 450MA 4WLCSP | |
| NCP160AFCS350T2G | IC REG LINEAR 3.5V 250MA 4WLCSP | |
| NCP160BFCT280T2G | IC REG LINEAR 2.8V 250MA 4WLCSP | |
| NCP161BFCT514T2G | IC REG LINEAR 5.14V 450MA 4WLCSP | |
| NCP160AFCTC330T2G | IC REG LINEAR 3.3V 250MA 4WLCSP | |
| NCP161AFCS320T2G | IC REG LINEAR 3.2V 450MA 4WLCSP | |
| NCP161AFCT185T2G | IC REG LINEAR 1.85V 450MA 4WLCSP | |
| NCP161AFCTC350T2G | CSP LDO 450MA 3.5V ACTIVE DISCHA | |
| NCP161AFCTC280T2G | CSP LDO 450MA 2.8V ACTIVE DISCHA | |
| NCP160AFCS285T2G | IC REG LINEAR 2.85V 250MA 4WLCSP | |
| NCP160AFCS500T2G | IC REG LINEAR 5V 250MA 4WLCSP | |
| NCP160AFCS514T2G | IC REG LINEAR 5.14V 250MA 4WLCSP | |
| NCP161AFCS285T2G | IC REG LINEAR 2.85V 450MA 4WLCSP | |
| NCP161AFCS450T2G | IC REG LINEAR 4.5V 450MA 4WLCSP | |
| NCP160BFCS250T2G | IC REG LINEAR 2.5V 250MA 4WLCSP | |
| NCP160BFCS350T2G | IC REG LINEAR 3.5V 250MA 4WLCSP | |
| NCP160BFCS450T2G | IC REG LINEAR 4.5V 250MA 4WLCSP | |
| NCP161BFCS450T2G | IC REG LINEAR 4.5V 450MA 4WLCSP | |
| NCP160BFCS514T2G | IC REG LINEAR 5.14V 250MA 4WLCSP | |
| NCP160BFCT500T2G | IC REG LINEAR 5V 250MA 4WLCSP | |
| NCP160AFCT450T2G | IC REG LINEAR 4.5V 250MA 4WLCSP | |
| NCP160AFCT500T2G | IC REG LINEAR 5V 250MA 4WLCSP | |
| NCP160AFCT514T2G | IC REG LINEAR 5.14V 250MA 4WLCSP | |
| NCP160BFCT250T2G | IC REG LINEAR 2.5V 250MA 4WLCSP | |
| NCP160BFCT300T2G | IC REG LINEAR 3V 250MA 4WLCSP | |
| NCP160BFCT350T2G | IC REG LINEAR 3.5V 250MA 4WLCSP | |
| NCP160BFCT450T2G | IC REG LINEAR 4.5V 250MA 4WLCSP | |
| NCP161AFCT450T2G | IC REG LINEAR 4.5V 450MA 4WLCSP | |
| NCP161BFCT250T2G | IC REG LINEAR 2.5V 450MA 4WLCSP | |
| NCP161BFCS250T2G | IC REG LINEAR 2.5V 450MA 4WLCSP | |
| NCP110AFCT085T2G | IC REG LINEAR 0.85V 200MA 4WLCSP | |
| NCP160BFCT514T2G | IC REG LINEAR 5.14V 250MA 4WLCSP | |
| NCP110AFCT080T2G | IC REG LINEAR 0.8V 200MA 4WLCSP | |
| NCP110AFCT110T2G | IC REG LINEAR 1.1V 200MA 4WLCSP | |
| NCP160BFCS500T2G | IC REG LINEAR 5V 250MA 4WLCSP | |
| NCP161BFCS500T2G | IC REG LINEAR 5V 450MA 4WLCSP | |
| NCP161BFCS514T2G | IC REG LINEAR 5.14V 450MA 4WLCSP | |
| NCP167AFCTC350T2G | IC REG LINEAR 3.5V 700MA 4WLCSP | |
| NCP148AFCT260T2G | IC REG LINEAR 2.6V 450MA 4WLCSP | |
| NCP148AFCT270T2G | IC REG LINEAR 2.7V 450MA 4WLCSP | |
| NCP161BFCT330T2G | IC REG LINEAR 3.3V 450MA 4WLCSP | |
| NCP160AFCS450T2G | IC REG LINEAR 4.5V 250MA 4WLCSP | |
| NCP160AFCT250T2G | IC REG LINEAR 2.5V 250MA 4WLCSP | |
| NCP160AFCT285T2G | IC REG LINEAR 2.85V 250MA 4WLCSP | |
| NCP160BFCS180T2G | IC REG LINEAR 1.8V 250MA 4WLCSP | |
| NCP160BFCS280T2G | IC REG LINEAR 2.8V 250MA 4WLCSP | |
| NCP160BFCS285T2G | IC REG LINEAR 2.85V 250MA 4WLCSP | |
| NCP160BFCS300T2G | IC REG LINEAR 3V 250MA 4WLCSP | |
| NCP160BFCT180T2G | IC REG LINEAR 1.8V 250MA 4WLCSP | |
| NCP160BFCT285T2G | IC REG LINEAR 2.85V 250MA 4WLCSP | |
| NCP160BFCT330T2G | IC REG LINEAR 3.3V 250MA 4WLCSP | |
| NCP161AFCT250T2G | IC REG LINEAR 2.5V 450MA 4WLCSP | |
| NCP161AFCT285T2G | IC REG LINEAR 2.85V 450MA 4WLCSP | |
| NCP161AFCT290T2G | IC REG LINEAR 2.9V 450MA 4WLCSP | |
| NCP161AFCT500T2G | IC REG LINEAR 5V 450MA 4WLCSP | |
| NCP161BFCS285T2G | IC REG LINEAR 2.85V 450MA 4WLCSP | |
| NCP161BFCT285T2G | IC REG LINEAR 2.85V 450MA 4WLCSP | |
| NCP161BFCT300T2G | IC REG LINEAR 3V 450MA 4WLCSP | |
| NCP161BFCT350T2G | IC REG LINEAR 3.5V 450MA 4WLCSP | |
| NCP161BFCT450T2G | IC REG LINEAR 4.5V 450MA 4WLCSP | |
| NCP160BFCS330T2G | IC REG LINEAR 3.3V 250MA 4WLCSP | |
| NCP161AFCT310T2G | IC REG LINEAR 3.1V 450MA 4WLCSP | |
| NCP160AFCS2925T2G | IC REG LIN 2.925V 250MA 4WLCSP | |
| NCP160AFCS370T2G | IC REG LINEAR 3.7V 250MA 4WLCSP | |
| NCP160BFCS2925T2G | IC REG LIN 2.925V 250MA 4WLCSP | |
| NCP161BFCT185T2G | IC REG LINEAR 1.85V 450MA 4WLCSP | |
| NCP163AFCS260T2G | IC REG LINEAR 2.6V 250MA 4WLCSP | |
| NCP163AFCS285T2G | IC REG LINEAR 2.85V 250MA 4WLCSP | |
| NCP163AFCS290T2G | IC REG LINEAR 2.9V 250MA 4WLCSP | |
| NCP163AFCS2925T2G | IC REG LIN 2.925V 250MA 4WLCSP | |
| NCP163AFCT180T2G | IC REG LINEAR 1.8V 250MA 4WLCSP | |
| NCP163AFCT260T2G | IC REG LINEAR 2.6V 250MA 4WLCSP | |
| NCP163AFCT285T2G | IC REG LINEAR 2.85V 250MA 4WLCSP | |
| NCP163AFCT290T2G | IC REG LINEAR 2.9V 250MA 4WLCSP | |
| NCP163AFCT2925T2G | IC REG LIN 2.925V 250MA 4WLCSP | |
| NCP163AFCT300T2G | IC REG LINEAR 3V 250MA 4WLCSP | |
| NCP163BFCS180T2G | IC REG LINEAR 1.8V 250MA 4WLCSP | |
| NCP163BFCS2925T2G | IC REG LIN 2.925V 250MA 4WLCSP | |
| NCP163BFCT180T2G | IC REG LINEAR 1.8V 250MA 4WLCSP | |
| NCP163BFCT2925T2G | IC REG LIN 2.925V 250MA 4WLCSP | |
| NCP163AFCS250T2G | IC REG LINEAR 2.5V 250MA 4WLCSP | |
| NCP163AFCT250T2G | IC REG LINEAR 2.5V 250MA 4WLCSP | |
| NCP161BFCS300T2G | IC REG LINEAR 3V 450MA 4WLCSP | |
| NCP163AFCS270T2G | IC REG LINEAR 2.7V 250MA 4WLCSP | |
| NCP163AFCT270T2G | IC REG LINEAR 2.7V 250MA 4WLCSP | |
| NCP167AFCT295T2G | IC REG LINEAR 2.95V 700MA 4WLCSP |
Productomschrijving
Productgegevens
450 mA, Ultra-Low Noise en High PSRR LDO Regulator voor RF- en analoge schakelingen
De NCP161 is een lineaire regulator die in staat is 450 mA uitgangsstroom te leveren.lage stilstandstroomHet apparaat is ontworpen om te werken met een 1 μF input en een 1 μF output keramische condensator.65 mm Chip Scale Package (CSP) en XDFN−4 0.65P, 1 mm x 1 mm.
Kenmerken
• Invoerspanningsbereik: 1,9 V tot 5,5 V• Verkrijgbaar in vaste spanning: 1,8 V tot 5,14 V
• ±2% nauwkeurigheid over belasting/temperatuur
• Ultra lage stilstandstroom type 18 μA
• Stand-by stroom: type 0,1 μA
• Zeer lage uitval: 150 mV bij 450 mA
• Ultrahoge PSRR: typisch 98 dB bij 20 mA, f = 1 kHz
• Ultralaag geluid: 10 μVRMS
• Stabiel met keramische condensatoren van 1 μF
• Beschikbaar in -WLCSP4 0,65 mm x 0,65 mm x 0,4 mm CASE 567KA
- WLCSP4 0,65 mm x 0,65 mm x 0,33 mm CASE 567JZ
−XDFN4 1 mm x 1 mm x 0,4 mm
• Deze apparaten zijn Pb-vrij, halogeenvrij/BFRvrij en voldoen aan de RoHS-normen.
Voldoende
Typische toepassingen
• Apparatuur op batterij• Draadloze LAN-apparaten
• Smartphones, tablets
• Camera's, DVR's, STB's en camcorders
Specificaties
| Aantekening | Waarde van de eigenschap |
|---|---|
| Vervaardiging | een half |
| Productcategorie | Lineaire spanningsregulatoren |
| Reeks | - |
| Verpakking | Tape & Reel (TR) |
| Eenheidsgewicht | 0.002413 oz. |
| Montage-stijl | SMD/SMT |
| Pakketdoos | 4-XFBGA, WLCSP |
| Werktemperatuur | -40 °C ~ 125 °C |
| Montage-type | Oppervlakte |
| Verpakking van het product van de leverancier | 4-WLCSP (0,64x0,64) |
| Voltage-invoer | tot 5,5 V |
| Stroom-uitgang | 450 mA |
| Voltage-uitgang | 3.3V |
| Regulator-topologie | Positief vast |
| Spanningsverlies-typisch | 0.15V @ 450mA |
| Aantal regelgevers | 1 Regulerend apparaat |
| Stroomlimiet-min | 450 mA |
| Pakketdoos | WLCSP-4 |
Beschrijvingen
Lineaire spanningsregelaar IC positief vast 1 Uitgang 3.3V 450mA 4-WLCSP (0.64x0.64)
LDO-regulator Pos 3.3V 0,45A 4-pin WLCSP T/R
LDO-spanningsregulatoren CSP LDO 450MA ACTIVE DIS
Geadviseerde Producten
