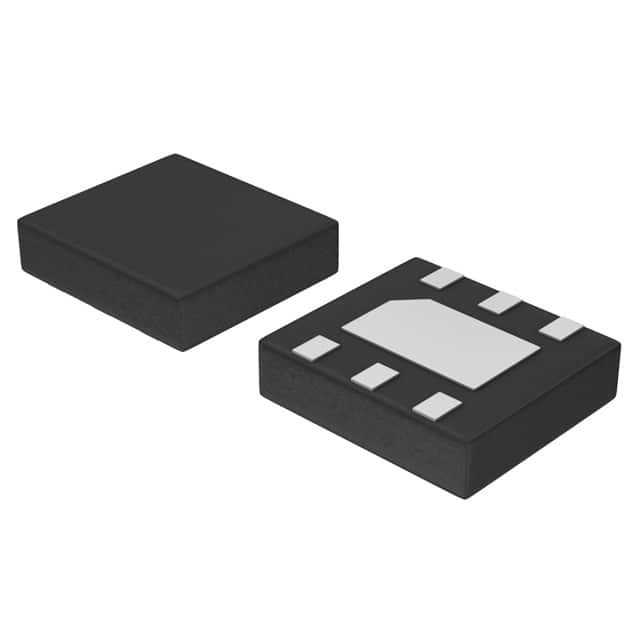

NCP692MN33T2G IC REG LINEAR 3.3V 1A 6DFN op semi
| Merknaam | onsemi |
|---|---|
| Modelnummer | NCP692MN33T2G |
| Min. bestelaantal | 1 |
| Prijs | Based on current price |
| Verpakking Details | antistatische zak & kartondoos |
| Levertijd | 3-5 werkdagen |
| Betalingscondities | T/T |
| Levering vermogen | In voorraad |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Uitgangsconfiguratie | Positief | Uitvoertype | Vast |
|---|---|---|---|
| Aantal regelgevers | 1 | Ingevoerd voltage - (Maximum) | 6V |
| Voltage - (Min/Vaste) Output | 3.3V | Voltage - (Maximum) Output | - |
| Spanningsuitval (Max) | 0.25V @ 1A | Huidig - Output | 1A |
| Huidig - Rustig (IQ) | 200 µA | Huidig - (Maximum) Levering | 240 μA |
| PSRR | - | Controleeigenschappen | Laat toe |
| Beschermingseigenschappen | Te hoge temperatuur, kortsluiting | Werktemperatuur | -40 °C ~ 85 °C |
| Montage-type | Oppervlakte | Pakket / doos | 6-VDFN Blootgesteld Stootkussen |
| Verpakking van de leverancier | 6-DFN (3x3) |
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
| Part Number | Description | |
|---|---|---|
| NCP692MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCV8187AML180TAG | IC REG LINEAR 1.8V 1.2A 6DFNW | |
| NCP606MNADJT2G | IC REG LINEAR POS ADJ 500MA 6DFN | |
| NCP690MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCV8570BMN330R2G | IC REG LINEAR 3.3V 200MA 6DFN | |
| NCV8605MN33T2G | IC REG LINEAR 3.3V 500MA 6DFN | |
| NCV8560MN330R2G | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCV5661MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCV8605MN18T2G | IC REG LINEAR 1.8V 500MA 6DFN | |
| NCV8187AMN180TAG | IC REG LINEAR 1.8V 1.2A 6DFN | |
| NCP605MN15T2G | IC REG LINEAR 1.5V 500MA 6DFN | |
| NCP605MN50T2G | IC REG LINEAR 5V 500MA 6DFN | |
| NCP692MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCV8187AML120TAG | IC REG LINEAR 1.2V 1.2A 6DFNW | |
| NCV8570BMN300R2G | IC REG LINEAR 3V 200MA 6DFN | |
| NCV8570BMN180R2G | IC REG LINEAR 1.8V 200MA 6DFN | |
| NCP605MN28T2G | IC REG LINEAR 2.8V 500MA 6DFN | |
| NCP606MN33T2G | IC REG LINEAR 3.3V 500MA 6DFN | |
| NCP606MN30T2G | IC REG LINEAR 3V 500MA 6DFN | |
| NCP691MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCV5661MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCV5661MN12T2G | IC REG LINEAR 1.2V 1A 6DFN | |
| NCP5661MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCV8605MNADJT2G | IC REG LINEAR POS ADJ 500MA 6DFN | |
| NCP623MN-50R2G | IC REG LINEAR 5V 150MA 6DFN | |
| NCP605MN18T2G | IC REG LINEAR 1.8V 500MA 6DFN | |
| NCP571MN12TBG | IC REG LINEAR 1.2V 150MA 6DFN | |
| NCP690MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCP606MN50T2G | IC REG LINEAR 5V 500MA 6DFN | |
| NCV5661MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCV8187AMN120TAG | IC REG LINEAR 1.2V 1.2A 6DFN | |
| NCV8623MN-50R2G | IC REG LINEAR 5V 150MA 6DFN | |
| NCP690MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCV5661MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCV571MN09TBG | IC REG LINEAR 0.9V 150MA 6DFN | |
| NCV571MN10TBG | IC REG LINEAR 1V 150MA 6DFN | |
| NCV571MN12TBG | IC REG LINEAR 1.2V 150MA 6DFN | |
| NCP571MN08TBG | IC REG LINEAR 0.8V 150MA 6DFN | |
| NCP623MN-28R2G | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCP623MN-25R2G | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCV8623MN-33R2G | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCV8623MN-28R2G | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCP606MN28T2G | IC REG LINEAR 2.8V 500MA 6DFN | |
| NCP692MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCP691MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCV8570BMN280R2G | IC REG LINEAR 2.8V 200MA 6DFN | |
| NCV8570BMN250R2G | IC REG LINEAR 2.5V 200MA 6DFN | |
| NCV8690MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCV8560MN500R2G | IC REG LINEAR 5V 150MA 6DFN | |
| NCV8560MN150R2G | IC REG LINEAR 1.5V 150MA 6DFN | |
| NCV5661MN28T2G | IC REG LINEAR 2.8V 1A 6DFN | |
| NCV5661MN30T2G | IC REG LINEAR 3V 1A 6DFN | |
| NCP5661MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCP5661MN28T2G | IC REG LINEAR 2.8V 1A 6DFN | |
| NCP5661MN30T2G | IC REG LINEAR 3V 1A 6DFN | |
| NCV8605MN25T2G | IC REG LINEAR 2.5V 500MA 6DFN | |
| NCV8605MN28T2G | IC REG LINEAR 2.8V 500MA 6DFN | |
| NCV8605MN30T2G | IC REG LINEAR 3V 500MA 6DFN | |
| NCV8606MN15T2G | IC REG LINEAR 1.5V 500MA 6DFN | |
| NCV8606MN25T2G | IC REG LINEAR 2.5V 500MA 6DFN | |
| NCV8606MN30T2G | IC REG LINEAR 3V 500MA 6DFN | |
| NCV8606MN50T2G | IC REG LINEAR 5V 500MA 6DFN | |
| NCP692MN50T2G | IC REG LINEAR 5V 1A 6DFN | |
| NCP5661MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCV8606MN33T2G | IC REG LINEAR 3.3V 500MA 6DFN | |
| NCV8606MNADJT2G | IC REG LINEAR POS ADJ 500MA 6DFN | |
| NCP500SQL25T1 | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCP500SQL18T1 | IC REG LINEAR 1.8V 150MA 6DFN | |
| NCP500SQL27T1 | IC REG LINEAR 2.7V 150MA 6DFN | |
| NCP500SQL33T1 | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCP500SQL50T1 | IC REG LINEAR 5V 150MA 6DFN | |
| NCP500SQL28T1 | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCP500SQL30T1 | IC REG LINEAR 3V 150MA 6DFN | |
| NCP500SQL18T1G | IC REG LINEAR 1.8V 150MA 6DFN | |
| NCP500SQL25T1G | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCP500SQL27T1G | IC REG LINEAR 2.7V 150MA 6DFN | |
| NCP500SQL28T1G | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCP500SQL30T1G | IC REG LINEAR 3V 150MA 6DFN | |
| NCP500SQL50T1G | IC REG LINEAR 5V 150MA 6DFN | |
| NCP623MN-33R2 | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCP623MN-50R2 | IC REG LINEAR 5V 150MA 6DFN | |
| NCP700MN180R2G | IC REG LINEAR 1.8V 200MA 6DFN | |
| NCP700MN280R2G | IC REG LINEAR 2.8V 200MA 6DFN | |
| NCP565MN30T2G | IC REG LINEAR 3V 1.5A 6DFN | |
| NCP600MN130R2G | IC REG LINEAR 1.3V 150MA 6DFN | |
| NCP605MN25T2G | IC REG LINEAR 2.5V 500MA 6DFN | |
| NCP605MN30T2G | IC REG LINEAR 3V 500MA 6DFN | |
| NCP623MN-30R2G | IC REG LINEAR 3V 150MA 6DFN | |
| NCP700MN250R2G | IC REG LINEAR 2.5V 200MA 6DFN | |
| NCP700MN275R2G | IC REG LINEAR 2.75V 200MA 6DFN | |
| NCP700MN330R2G | IC REG LINEAR 3.3V 200MA 6DFN | |
| NCV8560MN180R2G | IC REG LINEAR 1.8V 150MA 6DFN | |
| NCV8560MN250R2G | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCV8560MN280R2G | IC REG LINEAR 2.8V 150MA 6DFN | |
| NCV8560MN300R2G | IC REG LINEAR 3V 150MA 6DFN | |
| NCV8560MN350R2G | IC REG LINEAR 3.5V 150MA 6DFN | |
| NCP606MN15T2G | IC REG LINEAR 1.5V 500MA 6DFN | |
| NCV5661MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCV8570MN180R2G | IC REG LINEAR 1.8V 200MA 6DFN | |
| NCV8570MN250R2G | IC REG LINEAR 2.5V 200MA 6DFN | |
| NCV8570MN275R2G | IC REG LINEAR 2.75V 200MA 6DFN | |
| NCV8570MN280R2G | IC REG LINEAR 2.8V 200MA 6DFN | |
| NCV8570MN300R2G | IC REG LINEAR 3V 200MA 6DFN | |
| NCV8570MN330R2G | IC REG LINEAR 3.3V 200MA 6DFN | |
| NCP565MN12T2G | IC REG LINEAR 1.2V 1.5A 6DFN | |
| NCP565MN15T2G | IC REG LINEAR 1.5V 1.5A 6DFN | |
| NCP565MN28T2G | IC REG LINEAR 2.8V 1.5A 6DFN | |
| NCP565MN33T2G | IC REG LINEAR 3.3V 1.5A 6DFN | |
| NCP565MNADJT2G | IC REG LINEAR POS ADJ 1.5A 6DFN | |
| NCP5661MN12T2G | IC REG LINEAR 1.2V 1A 6DFN | |
| NCP5661MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCP5661MN33T2G | IC REG LINEAR 3.3V 1A 6DFN | |
| NCP700MN300R2G | IC REG LINEAR 3V 200MA 6DFN | |
| NCP690MN25T2G | IC REG LINEAR 2.5V 1A 6DFN | |
| NCP690MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCP691MN50T2G | IC REG LINEAR 5V 1A 6DFN | |
| NCP690MN50T2G | IC REG LINEAR 5V 1A 6DFN | |
| NCP691MN15T2G | IC REG LINEAR 1.5V 1A 6DFN | |
| NCP691MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCP571MN09TBG | IC REG LINEAR 0.9V 150MA 6DFN | |
| NCP571MN10TBG | IC REG LINEAR 1V 150MA 6DFN | |
| NCV571MN08TBG | IC REG LINEAR 0.8V 150MA 6DFN | |
| NCV8605MN15T2G | IC REG LINEAR 1.5V 500MA 6DFN | |
| NCV8605MN50T2G | IC REG LINEAR 5V 500MA 6DFN | |
| NCV8606MN18T2G | IC REG LINEAR 1.8V 500MA 6DFN | |
| NCV8606MN28T2G | IC REG LINEAR 2.8V 500MA 6DFN | |
| NCP692MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCP623MN-33R2G | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCP606MN18T2G | IC REG LINEAR 1.8V 500MA 6DFN | |
| NCV8623MN-25R2G | IC REG LINEAR 2.5V 150MA 6DFN | |
| NCV8623MN-30R2G | IC REG LINEAR 3V 150MA 6DFN | |
| NCV8623MN-40R2G | IC REG LINEAR 4V 150MA 6DFN | |
| NCP500SQL33T1G | IC REG LINEAR 3.3V 150MA 6DFN | |
| NCP605MN33T2G | IC REG LINEAR 3.3V 500MA 6DFN | |
| NCP605MNADJT2G | IC REG LINEAR POS ADJ 500MA 6DFN | |
| NCP606MN25T2G | IC REG LINEAR 2.5V 500MA 6DFN | |
| NCP691MNADJT2G | IC REG LINEAR POS ADJ 1A 6DFN | |
| NCP692MN18T2G | IC REG LINEAR 1.8V 1A 6DFN | |
| NCV8560MNADJR2G | IC REG LINEAR POS ADJ 150MA 6DFN |
Productomschrijving
Productgegevens
1 A, lage IGND, zeer lage uitvalregulator (VLDO) met/zonder activatie
De NCP690, NCP691, NCP692 CMOS LDO-familie levert 1 A uitgangsstroom met verbeterde ESD in zowel vaste spanningsopties als een verstelbare uitgangsspanning van 5,0 V tot 1,25 V.Dit apparaat is ontworpen voor ruimtebeperkte en draagbare batterij aangedreven toepassingen en biedt extra functies zoals hoge PSRR, laag stilstands- en grondstroomverbruik, geringe geluidsdruk, kortsluiting en thermische bescherming.Het apparaat is ontworpen om te worden gebruikt met goedkope keramische condensatoren en is verpakt in de 6−Lead DFN3x3 verpakking.
Kenmerken
• Uitgangsspanningsopties: instelbaar, 1,5 V, 1,8 V, 2,5 V, 3,3 V, 5,0 VAndere mogelijkheden
• Verstelbare uitgang door externe weerstanden van 5,0 V tot 1,25 V
• Gegarandeerde 1 A-uitgangsstroom
• ±1,5% Tolerantie van de uitgangsspanning onder alle bedrijfsomstandigheden (instelbaar)
• ±2% Tolerantie van de uitgangsspanning onder alle bedrijfsomstandigheden (vast)
• Typische geluidsspanning van 50 Vrms zonder bypasscondensator
• Typische uitvalspanning van 190 mV bij 1 A (Vout = 2,5 V, TJ = 25°C)
• Actieve uitslagontlading
• Actieve laag activerende pin (NCP691-apparaat)
• Active High Enable Pin (NCP692 apparaat)
• Verbeterde ESD: 4 kV en 400 V
Toepassingen
• Laptops en PCI-kaarten• Modembanken en Telecom-comités
• DSP, FPGA, microprocessor boards
• Draagbare toepassingen op batterij
• Harde schijven
• Dit zijn Pb-vrije apparaten
Specificaties
| Aantekening | Waarde van de eigenschap |
|---|---|
| Vervaardiging | een half |
| Productcategorie | Lineaire spanningsregulatoren |
| Reeks | NCP692 |
| Producten | LDO-regulatoren |
| Type | Regulerend spanningsysteem voor zeer lage spanning |
| Verpakking | Tape & Reel (TR) |
| Eenheidsgewicht | 0.000744 oz |
| Montage-stijl | SMD/SMT |
| Pakketdoos | 6-VDFN blootgestelde pad |
| Werktemperatuur | -40 °C ~ 85 °C |
| Montage-type | Oppervlakte |
| Uitgangstype | Vastgesteld |
| Verpakking van het product van de leverancier | 6-DFN (3x3) |
| Voltage-invoer | tot 6 V |
| Aantal outputten | 1 Output |
| Stroom-uitgang | 1A |
| Voltage-uitgang | 3.3V |
| Regulator-topologie | Positief vast |
| Spanningsverlies-typisch | 0.18V @ 1A |
| Aantal regelgevers | 1 Regulerend apparaat |
| Stroomlimiet-min | 1.1A |
| Maximale werktemperatuur | + 150 °C |
| Werktemperatuurbereik | - 40 C. |
| Uitgangsspanning | 3.3 V |
| Invoerspanning-MAX | 6 V |
| Uitgangsstroom | 1 A |
| Invoerspanning-MIN | 1.5 V |
| Beperking van de belasting | 35 mV |
| Pakketdoos | DFN-6 |
| Verwijderingsspanning | 250 mV |
| Verwijderingsspanning-max | 250 mV |
| Lijnregeling | 8 mV |
| Verwijdering van de stroomvoorziening (PSRR) | 62 dB |
Beschrijvingen
Lineaire spanningsregelaar IC positief vast 1 Uitgang 3.3V 1A 6-DFN (3x3)
LDO-regulator Pos 3.3V 1A 6-pin DFN EP T/R
LDO-spanningsregelaars LDO
