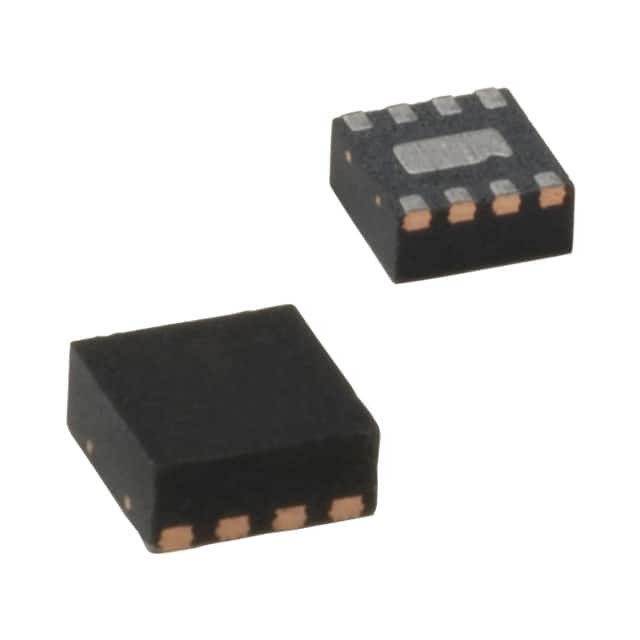

MIC5330-SSYML-TR IC REG LINEAR 3.3V/3.3V 8MLF Microchip technologie
| Merknaam | Microchip Technology |
|---|---|
| Modelnummer | Mic5330-ssyml-RT |
| Min. bestelaantal | 1 |
| Prijs | Based on current price |
| Verpakking Details | antistatische zak & kartondoos |
| Levertijd | 3-5 werkdagen |
| Betalingscondities | T/T |
| Levering vermogen | In voorraad |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Uitgangsconfiguratie | Positief | Uitvoertype | Vast |
|---|---|---|---|
| Aantal regelgevers | 2 | Ingevoerd voltage - (Maximum) | 5.5V |
| Voltage - (Min/Vaste) Output | 3.3V, 3.3V | Voltage - (Maximum) Output | - |
| Spanningsuitval (Max) | 0.2V @ 300mA, 0.2V @ 300mA | Huidig - Output | 300mA, 300mA |
| Huidig - Rustig (IQ) | 120 µA | Huidig - (Maximum) Levering | 200 µA |
| PSRR | 70dB ~ 65dB (1kHz ~ 20kHz) | Controleeigenschappen | Laat toe |
| Beschermingseigenschappen | Over Stroom, over Temperatuur | Werktemperatuur | -40°C ~ 125°C |
| Montage-type | Oppervlakte | Pakket / doos | 8-VFDFN Blootgesteld Stootkussen, 8-MLF® |
| Verpakking van de leverancier | 8-MLF® (2x2) |
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
| Part Number | Description | |
|---|---|---|
| MIC5330-SSYML-TR | IC REG LINEAR 3.3V/3.3V 8MLF | |
| MIC5283-5.0YML-TR | IC REG LINEAR 5V 150MA 8MLF | |
| MIC5283YML-TR | IC REG LINEAR POS ADJ 150MA 8MLF | |
| MIC5378YMT-TR | IC REG LIN POS ADJ 150MA 8TMLF | |
| MIC5310-GFYML-TR | IC REG LINEAR 1.5V/1.8V 8MLF | |
| MIC5310-PGYML-TR | IC REG LINEAR 1.8V/3V 8MLF | |
| MIC5332-J4YMT-TR | IC REG LINEAR 1.2V/2.5V 8MLF | |
| MIC5332-G4YMT-TR | IC REG LINEAR 1.2V/1.8V 8MLF | |
| MIC5330-SFYML-TR | IC REG LINEAR 1.5V/3.3V 8MLF | |
| MIC47100-1.0YML-TR | IC REG LINEAR 1V 1A 8MLF | |
| MIC5331-G4YMT-TR | IC REG LINEAR 1.2V/1.8V 8MLF | |
| MIC5331-J4YMT-TR | IC REG LINEAR 1.2V/2.5V 8MLF | |
| MIC5330-PGYML-TR | IC REG LINEAR 1.8V/3V 8MLF | |
| MIC47100YML-TR | IC REG LINEAR POS ADJ 1A 8MLF | |
| MIC5331-PPYMT-TR | IC REG LINEAR 3V/3V 8MLF | |
| MIC5377YMT-TR | IC REG LIN POS ADJ 150MA 8TMLF | |
| MIC5356-MGYML-TR | IC REG LINEAR 1.8V/2.8V 8MLF | |
| MIC5356-MMYML-TR | IC REG LINEAR 2.8V/2.8V 8MLF | |
| MIC5331-MMYMT-TR | IC REG LINEAR 2.8V/2.8V 8MLF | |
| MIC5331-MNYMT-TR | IC REG LINEAR 2.8V/2.85V 8MLF | |
| MIC5331-NNYMT-TR | IC REG LINEAR 2.85V/2.85V 8MLF | |
| MIC5331-PMYMT-TR | IC REG LINEAR 2.8V/3V 8MLF | |
| MIC5331-PNYMT-TR | IC REG LINEAR 2.85V/3V 8MLF | |
| MIC5332-MMYMT-TR | IC REG LINEAR 2.8V/2.8V 8MLF | |
| MIC5332-MNYMT-TR | IC REG LINEAR 2.8V/2.85V 8MLF | |
| MIC5332-NNYMT-TR | IC REG LINEAR 2.85V/2.85V 8MLF | |
| MIC5332-PMYMT-TR | IC REG LINEAR 2.8V/3V 8MLF | |
| MIC5332-PNYMT-TR | IC REG LINEAR 2.85V/3V 8MLF | |
| MIC5332-PPYMT-TR | IC REG LINEAR 3V/3V 8MLF | |
| MIC5310-MGYML-TR | IC REG LINEAR 1.8V/2.8V 8MLF | |
| MIC5310-GWYML-TR | IC REG LINEAR 1.6V/1.8V 8MLF | |
| MIC5310-JGYML-TR | IC REG LINEAR 1.8V/2.5V 8MLF | |
| MIC5310-JJYML-TR | IC REG LINEAR 2.5V/2.5V 8MLF | |
| MIC5310-LLYML-TR | IC REG LINEAR 2.7V/2.7V 8MLF | |
| MIC5310-PJYML-TR | IC REG LINEAR 2.5V/3V 8MLF | |
| MIC5310-PMYML-TR | IC REG LINEAR 2.8V/3V 8MLF | |
| MIC5310-SFYML-TR | IC REG LINEAR 1.5V/3.3V 8MLF | |
| MIC5310-SJYML-TR | IC REG LINEAR 2.5V/3.3V 8MLF | |
| MIC5310-SNYML-TR | IC REG LINEAR 2.85V/3.3V 8MLF | |
| MIC5310-SOYML-TR | IC REG LINEAR 2.9V/3.3V 8MLF | |
| MIC5310-SPYML-TR | IC REG LINEAR 3V/3.3V 8MLF | |
| MIC5310-KDYML-TR | IC REG LINEAR 1.85V/2.6V 8MLF | |
| MIC5310-KGYML-TR | IC REG LINEAR 1.8V/2.6V 8MLF | |
| MIC5310-MKYML-TR | IC REG LINEAR 2.6V/2.8V 8MLF | |
| MIC5310-MMYML-TR | IC REG LINEAR 2.8V/2.8V 8MLF | |
| MIC5310-NDYML-TR | IC REG LINEAR 1.85V/2.85V 8MLF | |
| MIC5310-NKYML-TR | IC REG LINEAR 2.6V/2.85V 8MLF | |
| MIC5310-NNYML-TR | IC REG LINEAR 2.85V/2.85V 8MLF | |
| MIC5310-OFYML-TR | IC REG LINEAR 1.5V/2.9V 8MLF | |
| MIC5310-OGYML-TR | IC REG LINEAR 1.8V/2.9V 8MLF | |
| MIC5310-OOYML-TR | IC REG LINEAR 2.9V/2.9V 8MLF | |
| MIC5310-PKYML-TR | IC REG LINEAR 2.6V/3V 8MLF | |
| MIC5310-PPYML-TR | IC REG LINEAR 3V/3V 8MLF | |
| MIC5310-SGYML-TR | IC REG LINEAR 1.8V/3.3V 8MLF | |
| MIC5310-SKYML-TR | IC REG LINEAR 2.6V/3.3V 8MLF | |
| MIC5310-SMYML-TR | IC REG LINEAR 2.8V/3.3V 8MLF | |
| MIC5310-SRYML-TR | IC REG LINEAR 3.2V/3.3V 8MLF | |
| MIC5310-SSYML-TR | IC REG LINEAR 3.3V/3.3V 8MLF | |
| MIC5310-MFYML-TR | IC REG LINEAR 1.5V/2.8V 8MLF | |
| MIC5310-PNYML-TR | IC REG LINEAR 2.85V/3V 8MLF | |
| MIC5310-MGYMT-TR | IC REG LINEAR 1.8V/2.8V 8MLF | |
| MIC5310-GGYML-TR | IC REG LINEAR 1.8V/1.8V 8MLF | |
| MIC5330-PKYML-TR | IC REG LINEAR 2.6V/3V 8MLF | |
| MIC5330-SKYML-TR | IC REG LINEAR 2.6V/3.3V 8MLF | |
| MIC5330-GFYML-TR | IC REG LINEAR 1.5V/1.8V 8MLF | |
| MIC5330-GWYML-TR | IC REG LINEAR 1.6V/1.8V 8MLF | |
| MIC5330-JGYML-TR | IC REG LINEAR 1.8V/2.5V 8MLF | |
| MIC5330-JJYML-TR | IC REG LINEAR 2.5V/2.5V 8MLF | |
| MIC5330-KDYML-TR | IC REG LINEAR 1.85V/2.6V 8MLF | |
| MIC5330-KGYML-TR | IC REG LINEAR 1.8V/2.6V 8MLF | |
| MIC5330-LLYML-TR | IC REG LINEAR 2.7V/2.7V 8MLF | |
| MIC5330-NDYML-TR | IC REG LINEAR 1.85V/2.85V 8MLF | |
| MIC5330-NKYML-TR | IC REG LINEAR 2.6V/2.85V 8MLF | |
| MIC5330-OFYML-TR | IC REG LINEAR 1.5V/2.9V 8MLF | |
| MIC5330-OOYML-TR | IC REG LINEAR 2.9V/2.9V 8MLF | |
| MIC5330-SJYML-TR | IC REG LINEAR 2.5V/3.3V 8MLF | |
| MIC5330-SMYML-TR | IC REG LINEAR 2.8V/3.3V 8MLF | |
| MIC5330-SOYML-TR | IC REG LINEAR 2.9V/3.3V 8MLF | |
| MIC5330-MFYML-TR | IC REG LINEAR 1.5V/2.8V 8MLF | |
| MIC5330-MGYML-TR | IC REG LINEAR 1.8V/2.8V 8MLF | |
| MIC5330-MKYML-TR | IC REG LINEAR 2.6V/2.8V 8MLF | |
| MIC5330-MMYML-TR | IC REG LINEAR 2.8V/2.8V 8MLF | |
| MIC5330-OGYML-TR | IC REG LINEAR 1.8V/2.9V 8MLF | |
| MIC5330-PJYML-TR | IC REG LINEAR 2.5V/3V 8MLF | |
| MIC5330-PNYML-TR | IC REG LINEAR 2.85V/3V 8MLF | |
| MIC5330-PPYML-TR | IC REG LINEAR 3V/3V 8MLF | |
| MIC5330-SPYML-TR | IC REG LINEAR 3V/3.3V 8MLF | |
| MIC5330-SRYML-TR | IC REG LINEAR 3.2V/3.3V 8MLF | |
| MIC5330-NNYML-TR | IC REG LINEAR 2.85V/2.85V 8MLF | |
| MIC5330-PMYML-TR | IC REG LINEAR 2.8V/3V 8MLF | |
| MIC5330-SGYML-TR | IC REG LINEAR 1.8V/3.3V 8MLF | |
| MIC5330-SNYML-TR | IC REG LINEAR 2.85V/3.3V 8MLF | |
| MIC5330-GGYML-TR | IC REG LINEAR 1.8V/1.8V 8MLF | |
| MIC47100-0.8YML-TR | IC REG LINEAR 0.8V 1A 8MLF | |
| MIC47100-1.2YML-TR | IC REG LINEAR 1.2V 1A 8MLF | |
| MIC5356-MGYML-T5 | IC REG LINEAR 1.8V/2.8V 8MLF | |
| MIC5356-MMYML-T5 | IC REG LINEAR 2.8V/2.8V 8MLF | |
| MIC5283YML-T5 | IC REG LINEAR POS ADJ 150MA 8MLF |
Productomschrijving
Productgegevens
Algemene beschrijving
De MIC5330 is een kleine Dual Ultra Low-Dropout (ULDOTM) lineaire regulator die ideaal is voor draagbare elektronica vanwege zijn hoge krachtaanvoergolfverwijdering (PSRR) en ultra laag uitgangsgeluid.De MIC5330 integreert twee high-performance; 300mA ULDO's in een klein 2 mm x 2 mm loodloos MLF®-pakket, dat uitzonderlijke thermische pakketkenmerken biedt.
Kenmerken
• Invoerspanningsbereik van 2,3 V tot 5,5 V• Ultralage uitslagspanning ULDOTM 75mV @ 300mA
• Hoge PSRR - > 70 dB @ 1KHz
• Ultra-laag uitgangsgeluid: 30 μVRMS
• ±2% aanvankelijke uitslagnauwkeurigheid
• Kleine 8-pin 2 mm x 2 mm MLF® loodloze verpakking
• Uitstekende reactie op de lijn/last
• Snelle starttijd: 30 μs
• 300mA uitgangsstroom per LDO
• bescherming tegen thermische uitschakeling
• Lage stilstandsstroom: 75 μA per uitgang
• Bescherming van de stroomgrens
Toepassingen
• Mobiele telefoons• PDA's
• GPS-ontvangers
• Draagbare elektronica
• Draagbare mediaspeler
• Digitale foto's en videocamera's
Specificaties
| Aantekening | Waarde van de eigenschap |
|---|---|
| Vervaardiging | Microchiptechnologie |
| Productcategorie | Lineaire spanningsregulatoren |
| Mfr | Microchiptechnologie |
| Reeks | - |
| Pakket | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Productstatus | Actief |
| Output-configuratie | Positief |
| Uitgangstype | Vastgesteld |
| Aantal regelgevers | 2 |
| Inputspanning-max | 5,5 V |
| Voltage-uitgang-min-vast | 3,3 V |
| Spanning-uitgang-max | - |
| Voltage-uitval-max | 0,2V @ 300mA 0,2V @ 300mA |
| Stroom-uitgang | 300mA 300mA |
| Stroom-Rust-Iq | 120 μA |
| Stroomvoorziening-max | 200 μA |
| PSRR | 70dB ~ 65dB (1kHz ~ 20kHz) |
| Beheersfuncties | Inzetten |
| Beschermingsfuncties | Overstroom over temperatuur |
| Werktemperatuur | -40 °C ~ 125 °C |
| Montage-type | Oppervlakte |
| Pakketdoos | 8-VFDFN Exposed Pad 8-MLF® |
| Verpakking van het product van de leverancier | 8-MLF® (2x2) |
| Basisproductnummer | MIC5330 |
Beschrijvingen
Lineaire spanningsregelaar IC Positieve vaste 2 Uitgang 3.3V 300mA, 300mA 8-MLF? (2x2)
LDO-regulator Pos 3.3V3.3V 0.3A/0.3A 8-pin DFN EP T/R
LDO-spanningsregelaars
