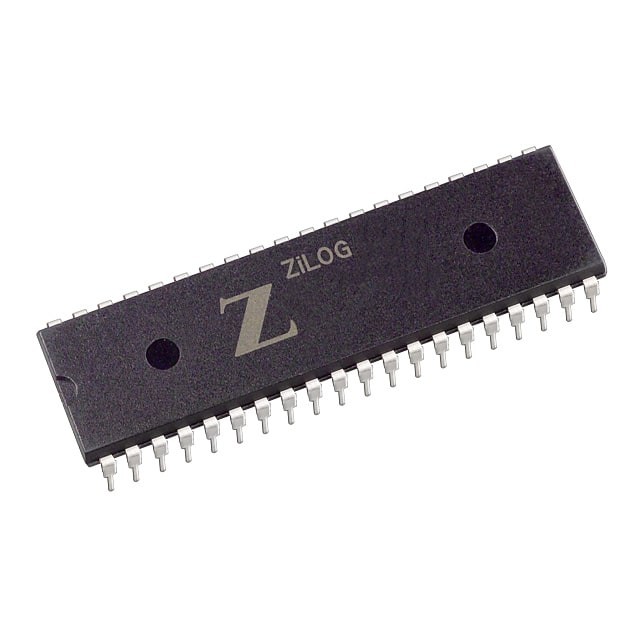

Z86E4412PSG IC MCU 8BIT 16KB OTP 40DIP Zilog
| Merknaam | Zilog |
|---|---|
| Modelnummer | Z86E4412PSG |
| Min. bestelaantal | 1 |
| Prijs | Based on current price |
| Verpakking Details | antistatische zak & kartondoos |
| Levertijd | 3-5 werkdagen |
| Betalingscondities | T/T |
| Levering vermogen | In voorraad |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Kernbewerker | Z8 | Kerngrootte | met 8 bits |
|---|---|---|---|
| Versnelling | 12MHz | Connectiviteit | EBI/EMI |
| Randapparatuur | POR, WDT | Aantal I/O's | 32 |
| De Grootte van het programmageheugen | 16KB (16K x 8) | Het Type van programmageheugen | OTP |
| EEPROM-Grootte | - | RAM Size | 236 x 8 |
| Voltage - Levering (Vcc/Vdd) | 3,5V ~ 5,5V | Gegevensconvertors | - |
| Oscillatortype | Intern | Werktemperatuur | 0°C ~ 70°C (TA) |
| Montage-type | Door het gat | Pakket / doos | 40-ONDERDOMPELING (0,620“, 15.75mm) |
| Verpakking van de leverancier | - |
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
| Part Number | Description | |
|---|---|---|
| Z86E4412PSG | IC MCU 8BIT 16KB OTP 40DIP | |
| Z8F1621PM020SG | IC MCU 8BIT 16KB FLASH 40DIP | |
| Z86E4016PSG | IC MCU 8BIT 4KB OTP 40DIP | |
| Z86E6116PSG | IC MCU 8BIT 16KB OTP 40DIP | |
| Z86E6316PSG | IC MCU 8BIT 32KB OTP 40DIP | |
| Z8F0880PM020EG | IC MCU 8BIT 8KB FLASH 40DIP | |
| Z8F0880PM020SG | IC MCU 8BIT 8KB FLASH 40DIP | |
| Z8F2480PM020EG | IC MCU 8BIT 24KB FLASH 40DIP | |
| Z8F2480PM020SG | IC MCU 8BIT 24KB FLASH 40DIP | |
| Z8F1680PM020EG | IC MCU 8BIT 16KB FLASH 40DIP | |
| Z8F1680PM020SG | IC MCU 8BIT 16KB FLASH 40DIP | |
| Z8F1621PM020EG | IC MCU 8BIT 16KB FLASH 40DIP | |
| Z8F2421PM020EG | IC MCU 8BIT 24KB FLASH 40DIP | |
| Z8F2421PM020SG | IC MCU 8BIT 24KB FLASH 40DIP | |
| Z8F3221PM020EG | IC MCU 8BIT 32KB FLASH 40DIP | |
| Z8F3221PM020SG | IC MCU 8BIT 32KB FLASH 40DIP | |
| Z86C1505PSGR2306 | IC MCU 8BIT 4KB ROM 40DIP | |
| Z8F4821PM020EG | IC MCU 8BIT 48KB FLASH 40DIP | |
| Z8F4821PM020SG | IC MCU 8BIT 48KB FLASH 40DIP | |
| Z8F6421PM020EG | IC MCU 8BIT 64KB FLASH 40DIP | |
| Z8F6421PM020SG | IC MCU 8BIT 64KB FLASH 40DIP | |
| Z86E1505PSG | IC MCU 8BIT 4KB OTP 40DIP | |
| Z86E4312PSG | IC MCU 8BIT 4KB OTP 40DIP | |
| Z86E4016PEG | IC MCU 8BIT 4KB OTP 40DIP | |
| Z8674312PSG | IC MCU 8BIT 8KB OTP 40DIP | |
| Z88C0020PSG | IC MCU 8BIT ROMLESS 40DIP | |
| Z86E2112PSC | IC MCU 8BIT 8KB OTP 40DIP | |
| Z86E2116PSC | IC MCU 8BIT 8KB OTP 40DIP | |
| Z86E4016PEC | IC MCU 8BIT 4KB OTP 40DIP | |
| Z86E4016PSC | IC MCU 8BIT 4KB OTP 40DIP | |
| Z86E4316PSC | IC MCU 8BIT 4KB OTP 40DIP | |
| Z86E4416PSC | IC MCU 8BIT 16KB OTP 40DIP | |
| Z86E6116PSC | IC MCU 8BIT 16KB OTP 40DIP | |
| Z86E6316PSC | IC MCU 8BIT 32KB OTP 40DIP | |
| Z86E4412PSC | IC MCU 8BIT 16KB OTP 40DIP | |
| Z86E4312PSC | IC MCU 8BIT 4KB OTP 40DIP | |
| Z8674312PSC | IC MCU 8BIT 8KB OTP 40DIP | |
| Z88C0020PSC | IC MCU 8BIT ROMLESS 40DIP | |
| Z8609316PSC | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C1505PSCR2306 | IC MCU 8BIT 4KB ROM 40DIP | |
| Z86C9012PEC | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9012PSC | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9116PEC | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9116PSC | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9320PSC | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9325PSC | IC MCU 8BIT ROMLESS 40DIP | |
| Z86D990PZ008SC | IC MCU 8BIT 32KB OTP 40DIP | |
| Z86E1505PSC | IC MCU 8BIT 4KB OTP 40DIP | |
| Z86E2204PSC | IC MCU 8BIT 8KB OTP 40DIP | |
| Z86E2304PSC | IC MCU 8BIT 8KB OTP 40DIP | |
| Z86E7216PSC | IC MCU 8BIT 16KB OTP 40DIP | |
| Z86E7316PSC | IC MCU 8BIT 32KB OTP 40DIP | |
| Z8F1601PM020SC | IC MCU 8BIT 16KB FLASH 40DIP | |
| Z8F2401PM020SC | IC MCU 8BIT 24KB FLASH 40DIP | |
| Z8F3201PM020SC | IC MCU 8BIT 32KB FLASH 40DIP | |
| Z8F4801PM020SC | IC MCU 8BIT 48KB FLASH 40DIP | |
| Z8F6401PM020SC | IC MCU 8BIT 64KB FLASH 40DIP | |
| Z86D7308PSC | IC MCU 8BIT 32KB OTP 40DIP | |
| Z8F1601PM020EC | IC MCU 8BIT 16KB FLASH 40DIP | |
| Z8F2401PM020EC | IC MCU 8BIT 24KB FLASH 40DIP | |
| Z8F3201PM020EC | IC MCU 8BIT 32KB FLASH 40DIP | |
| Z8F4801PM020EC | IC MCU 8BIT 48KB FLASH 40DIP | |
| Z8F6401PM020EC | IC MCU 8BIT 64KB FLASH 40DIP | |
| Z8F1621PM020EC | IC MCU 8BIT 16KB FLASH 40DIP | |
| Z8F1621PM020SC | IC MCU 8BIT 16KB FLASH 40DIP | |
| Z8F2421PM020EC | IC MCU 8BIT 24KB FLASH 40DIP | |
| Z8F2421PM020SC | IC MCU 8BIT 24KB FLASH 40DIP | |
| Z8F3221PM020EC | IC MCU 8BIT 32KB FLASH 40DIP | |
| Z8F3221PM020SC | IC MCU 8BIT 32KB FLASH 40DIP | |
| Z8F4821PM020EC | IC MCU 8BIT 48KB FLASH 40DIP | |
| Z8F4821PM020SC | IC MCU 8BIT 48KB FLASH 40DIP | |
| Z8F6421PM020EC | IC MCU 8BIT 64KB FLASH 40DIP | |
| Z8F6421PM020SC | IC MCU 8BIT 64KB FLASH 40DIP | |
| ZGP323HEP4004C | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323HEP4008C | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323HEP4016C | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323HEP4032C | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323HSP4004C | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323HSP4008C | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323HSP4016C | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323HSP4032C | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323LEP4004C | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323LEP4008C | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323LEP4016C | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323LEP4032C | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323LSP4004C | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323LSP4008C | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323LSP4016C | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323LSP4032C | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323HAP4004C | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323HAP4008C | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323HAP4016C | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323HAP4032C | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323LAP4004C | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323LAP4008C | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323LAP4016C | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323LAP4032C | IC MCU 8BIT 32KB OTP 40DIP | |
| Z86K1505PSCR4545 | IC MCU 8BIT 4KB ROM 40DIP | |
| Z86D990PZ008SG | IC MCU 8BIT 32KB OTP 40DIP | |
| Z86E7316PSG | IC MCU 8BIT 32KB OTP 40DIP | |
| Z86E7216PSG | IC MCU 8BIT 16KB OTP 40DIP | |
| Z86C9320PSG | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9325PSG | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9116PEG | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9116PSG | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9012PEG | IC MCU 8BIT ROMLESS 40DIP | |
| Z86C9012PSG | IC MCU 8BIT ROMLESS 40DIP | |
| Z8609316PSG | IC MCU 8BIT ROMLESS 40DIP | |
| ZGP323HAP4032G | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323HAP4008G | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323HAP4016G | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323HEP4016G | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323HEP4032G | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323HSP4032G | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323HAP4004G | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323HEP4008G | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323HSP4016G | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323LAP4032G | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323HEP4004G | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323HSP4008G | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323LAP4016G | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323LEP4032G | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323HSP4004G | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323LAP4008G | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323LEP4016G | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323LSP4032G | IC MCU 8BIT 32KB OTP 40DIP | |
| ZGP323LAP4004G | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323LEP4004G | IC MCU 8BIT 4KB OTP 40DIP | |
| ZGP323LEP4008G | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323LSP4008G | IC MCU 8BIT 8KB OTP 40DIP | |
| ZGP323LSP4016G | IC MCU 8BIT 16KB OTP 40DIP | |
| ZGP323LSP4004G | IC MCU 8BIT 4KB OTP 40DIP | |
| Z86K1505PSGR4545 | IC MCU 8BIT 4KB ROM 40DIP | |
| Z86C6116PSCR1546 | IC MCU 8BIT 16KB ROM 40DIP | |
| Z86C6116PSCR3353 | IC MCU 8BIT 16KB ROM 40DIP | |
| Z86C6116PSCR4016 | IC MCU 8BIT 16KB ROM 40DIP | |
| Z86K1505PSCR4243 | IC MCU 8BIT 4KB ROM 40DIP |
Productomschrijving
Productgegevens
Architectonisch overzicht
Zilog's Z86E33/733/E34, E43/743/E44 8-bit One-Time Programmable (OTP) microcontrollers zijn leden van Zilog's single-chip Z8® MCU-familie met verbeterde wake-up circuits,programmabele Wachthondstimers, Low Noise EMI-opties en gemakkelijke uitbreidingsmogelijkheden voor hardware/software-systemen.
Kenmerken
• Standaardtemperatuur (VCC = 3,5 V tot 5,5 V)• Verlengde temperatuur (VCC = 3,5 V tot 5,5 V)
• Beschikbare pakketten
️ 28 pin DIP/SOIC/PLCC OTP (E33/733/E34)
️ 40-pin DIP OTP (E43/743/E44)
️ 44-Pin PLCC/LQFP OTP (E43/743/E44)
• Software-enabled watchdog timer (WDT)
• Programmeerbaar voor druk-trek/open-afvoer
op haven 0, haven 1 en haven 2
• 24/32 Input/Output lijnen
• WDT-reset zonder klok
• Automatisch aansteken opnieuw instellen (POR)
• Programmeerbare OTP-opties:
¢ RC-oscillator
EPROM Protect
¢ Permanent ingeschakeld WDT
¢ Crystal Oscillator Feedback Resistor uitgeschakeld
RAM Protect
• laag energieverbruik: 60 mW
• Snelle instructiepointer: 0,75 μs
• Twee stand-by-modes: STOP en HALT
• Digitale invoer CMOS-niveaus, Schmitt-geactiveerd
• Programmabele lage-EMI-modus
• Twee programmeerbare 8-bits tellers/timers
Elk met een 6-bit programmeerbare prescaler
• Zes vectoren, prioritaire onderbrekingen
Uit zes verschillende bronnen
• Twee vergelijkers
• On-chip oscillator die een kristal accepteert,
Keramische resonator, LC, RC of externe klok aandrijving
Specificaties
| Aantekening | Waarde van de eigenschap |
|---|---|
| Vervaardiging | Zilog |
| Productcategorie | Microcontrollers |
| Reeks | Z8R |
| Verpakking | Buis |
| Eenheidsgewicht | 0.210004 oz |
| Montage-stijl | Door het gat |
| Pakketdoos | 40-DIP (0,620", 15,75 mm) |
| Werktemperatuur | 0°C ~ 70°C (TA) |
| Verpakking van het product van de leverancier | * |
| Aantal I-O | 32 I/O |
| Versnelling | 12MHz |
| EEPROM-grootte | - |
| Core-processor | Z8 |
| RAM-grootte | 236 x 8 |
| Programmemory | OTP |
| Perifere apparatuur | POR, WDT |
| Connectiviteit | EBI/EMI |
| Voltage-toevoer-Vcc-Vdd | 3.5 V ~ 5.5 V |
| Grootte van de kern | 8 bit |
| Programma-geheugen-grootte | 16KB (16K x 8) |
| Gegevensomvormers | - |
| Tipe oscillator | Intern |
| Maximale werktemperatuur | + 70 °C |
| Werktemperatuurbereik | 0 C |
| Werktoevoerspanning | 3.5 V tot 5,5 V |
| Kern | Z8 |
| Processor-serie | Z86E4xx |
| Databusbreedte | 8 bit |
| Versmeltingsspanning-max | 5.5 V |
| Voedingsspanning-min | 3.5 V |
| Pakketdoos | PDIP-40 |
| Maximale klokfrequentie | 12 MHz |
| Input/output | 32 I/O |
| Data-RAM-grootte | 237 B |
| Data-ROM-grootte | 16 kB |
| Aantal timer-tellers | 2 Timer |
| ADC-resolutie | Geen ADC |
| Data-ROM-type | EPROM |
| Vervaardigersdeel# | Beschrijving | Vervaardiging | Vergelijk |
| Z86E4412PEC Microcontrollers en processoren |
IC 8-bit, OTPROM, 12 MHz, MICROCONTROLLER, PDIP40, PLASTIC, DIP-40, Microcontroller | Zilog Inc. | Z86E4412PSG versus Z86E4412PEC |
| Z86E4412PEG Microcontrollers en processoren |
Microcontroller, 8-bit, OTPROM, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40 | IXYS Corporation | Z86E4412PSG versus Z86E4412PEG |
| Z86E4412PSC Microcontrollers en processoren |
Microcontroller, 8-bit, OTPROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40 | IXYS Corporation | Z86E4412PSG versus Z86E4412PSC |
| Z86E4412PSG Microcontrollers en processoren |
Microcontroller, 8-bit, OTPROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40 | IXYS Corporation | Z86E4412PSG versus Z86E4412PSG |
Beschrijvingen
Microcontroller IC 8-Bit 12MHz 16KB (16K x 8) OTP
8-bits microcontrollers - MCU Z8 16K OTP 12MHz
Geadviseerde Producten
